Siemens 6ES7461-3AA00-0AA0 SIMATIC S7-400 IM 461-3 interface receiver module Ready For Ship

Siemens 6ES7461-3AA00-0AA0 SIMATIC S7-400 IM 461-3 interface receiver module Ready For Ship

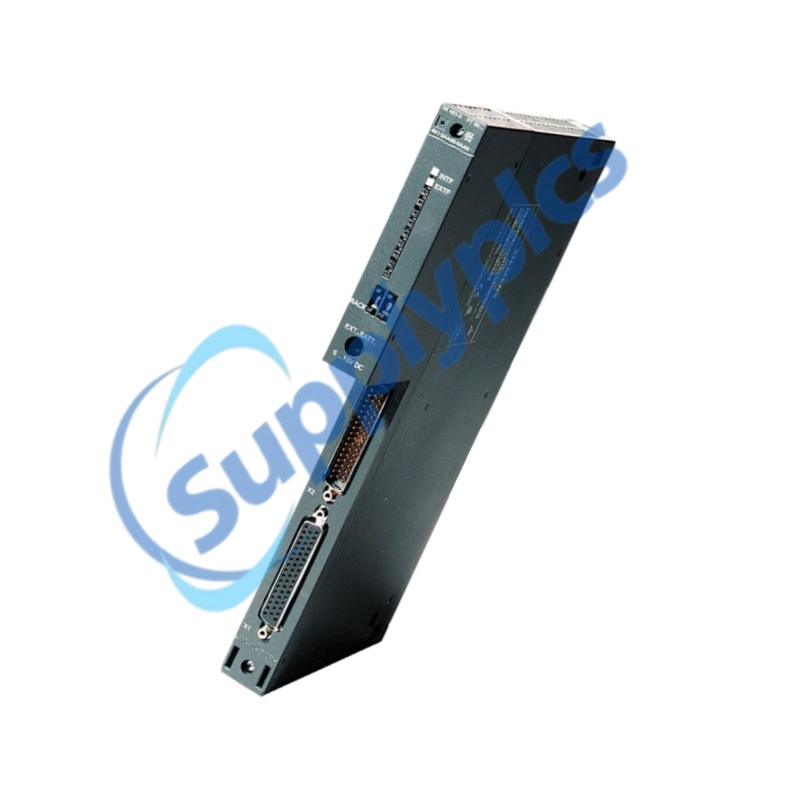

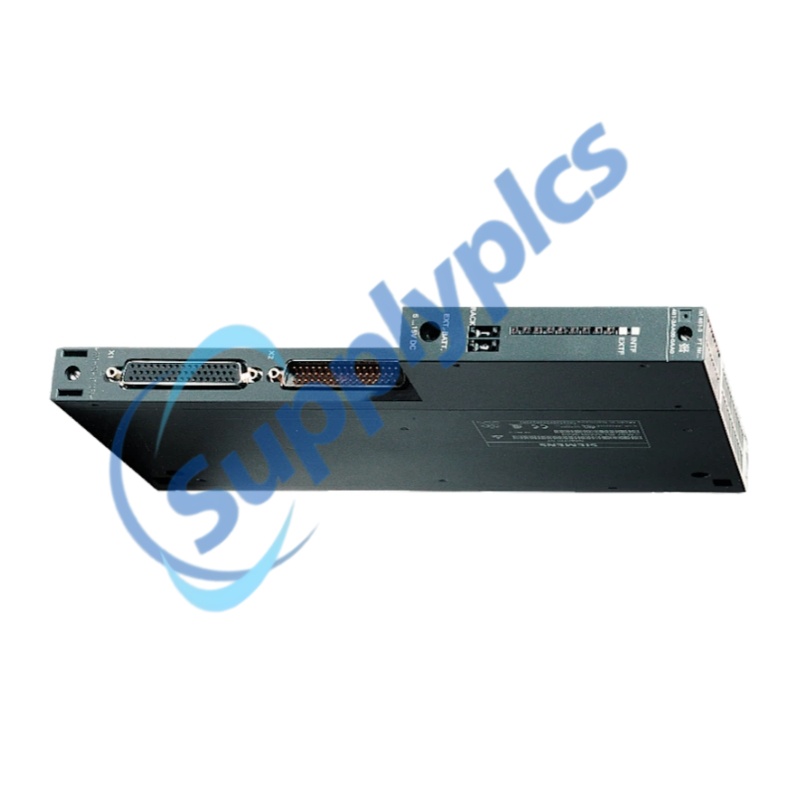

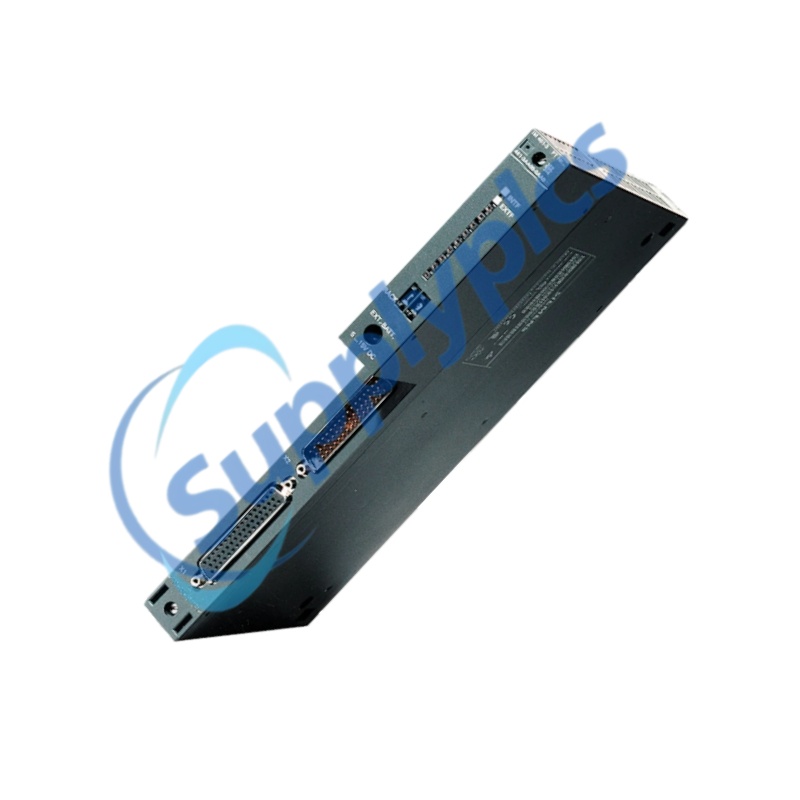

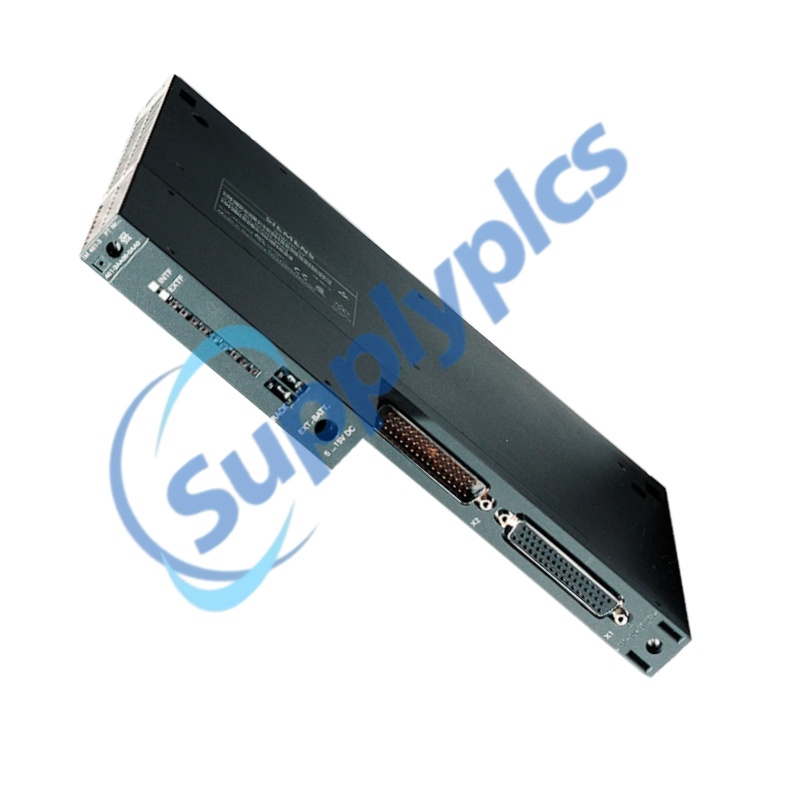

Product Name:SIMATIC S7-400 IM461-3 Receiver Interface Module

Brand Name:Siemens

Model Number:6ES7461-3AA00-0AA0

Place of Origin:Germany

Warranty:12 Months

Whatsapp:+86 18020776782

Email:[email protected]

Appurtenance:

siemens 6es7461 3aa00 0aa0 simatic s7 400 im 461 3 interface receiver module ready for ship-1

Overview
Specifications
Commercial Terms
Description
Operating Principle & Applications
Configuration Advantages
FAQ
Why Choose Us
Other Products
Recommended Products

SALES	EMAIL	PHONE / WHATSAPP
Jim Pei	[email protected]	+86 18020776782

Specifications

COMPACT TECHNICAL MATRIX

PLC Interface Module

Model Number	6ES7461-3AA00-0AA0
Product Family	SIMATIC S7-400
Product Type	IM461-3 receiver interface module
Required Transmitter	IM460-3
Coupling Type	Remote expansion-rack coupling
Maximum Link Length	102 m
Communication Bus	Transferred at full baud rate
Rack Number Range	1 to 21
Default Distance Setting	100 m
External Backup Input	5 to 15 V
Input Connector	X1
Downstream / Terminator Connector	X2
Internal Fault LED	INTF red
External Fault LED	EXTF red
Backplane Current	590 mA typical; 620 mA maximum at 5 V DC
Power Loss	2.95 W typical; 3.10 W maximum
Terminator	6ES7461-3AA00-7AA0
Dimensions	25 x 290 x 280 mm
Weight	620 g

Commercial Terms

PURCHASING TERM	DETAILS
Minimum Order Quantity	1 Piece
Price	Contact for Jim
Packaging Details	Original new Factory Sealed
Delivery Time	3–7 Days
Payment Terms	T/T
Shipping Method	DHL / FedEx / UPS / TNT
Supply Ability	Brand new, In Stock

Description

PRODUCT

Engineering
Profile

CONFIGURATION

6ES7461-3AA00-0AA0 is an S7-400 receiver interface for remote expansion-rack coupling with an IM460-3 transmitter over links up to 102 m. The communication bus is transmitted at full baud rate and the receiving rack number is selected from 1 to 21. The specification table uses only manufacturer-published values for this exact product or documented family configuration.

SYSTEM FIT

6ES7461-3AA00-0AA0 It links distributed S7-400 expansion racks to a central rack while retaining backplane communication. Verify the matching IM460-3, exact cable length setting, rack number, terminator and external backup supply arrangement. Correct identification and configuration support predictable commissioning and safe replacement.

Operating Principle & Applications

01 Receive the remote-rack linkAccepts the communication-bus connection from the preceding interface.	02 Identify the expansion rackCoding switches define the receiving rack number.
03 Forward the linkX2 continues the chain or accepts the terminator.	04 Report coupling faultsINTF and EXTF LEDs indicate addressing or link problems.

TYPICAL USE FIELDS

SIMATIC S7-400 IM461-3 Receiver Interface Module · PLC Interface Module

Configuration Advantages

102 m

Maximum link

1-21

Rack address range

620 mA

Maximum 5 V current

Long remote connectionThe IM460-3/IM461-3 pair supports up to 102 m total.

Distance-aware timingSTEP 7 can set the actual link length for reliable transmission.

Backup continuityAn external 5 to 15 V source can preserve rack backup during supply replacement.

FAQ

01	Which transmitter must be paired with 6ES7461-3AA00-0AA0?	Use the matching S7-400 IM460-3 transmitter.
02	How far can 6ES7461-3AA00-0AA0 extend an S7-400 rack link?	The documented maximum total link length is 102 m.
03	Why is the distance value configured for 6ES7461-3AA00-0AA0?	The setting should exceed the actual cable length and helps optimize transmission timing.
04	Which rack addresses are valid on 6ES7461-3AA00-0AA0?	Set a receiving-rack number from 1 through 21.
05	What does the EXTF LED indicate on 6ES7461-3AA00-0AA0?	It reports an external coupling fault such as a broken link, missing terminator or unavailable rack.
06	Which termination part belongs to 6ES7461-3AA00-0AA0?	The manual specifies 6ES7461-3AA00-7AA0.
