Product Name:Communications Module
Brand Name: SIEMENS
Model Number:405-15ABM
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
405-15ABM |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Manufacturer |
Siemens / FACTS Engineering |
|
Model Number |
405-15ABM / TI-405-15ABM |
|
Product Type |
Triple Port Overdrive CoProcessor Module |
|
Processor Clock Speed |
26 MHz (max.) |
|
Memory Capacity |
128 KB (128k) battery-backed RAM; 128 KB (128k) program memory |
|
Number of Ports |
3 buffered serial ports |
|
Port 1 Configuration |
RS-232C / RS-422 / RS-485 (selectable), max. baud rate 115.2K |
|
Port 2 Configuration |
RS-232C / RS-422 / RS-485 (selectable), max. baud rate 57.6K (or up to 115.2K) |
|
Port 3 Configuration |
RS-232C (via unused RTS/CTS lines of Port 1), max. baud rate 19.2K |
|
Programming Language |
FACTS Extended BASIC |
|
Software |
ABM Commander for Windows (included on CD-ROM) |
|
PLC Compatibility |
DL405 / DirectLOGIC 405 / Siemens TI 405 series |
|
Real-Time Clock |
Battery-backed calendar / clock |
|
Math Capability |
Floating point math (8 significant digits) |
|
Internal Power Consumption |
305 mA maximum at +5 VDC (supplied by base power supply) |
|
Operating Environment |
0°C to 60°C (32°F to 140°F); 5% to 95% humidity (non-condensing) |
|
Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
|
Mounting |
Plugs into any DL405 base I/O slot |
|
Agency Approvals |
UL, CUL, CE |

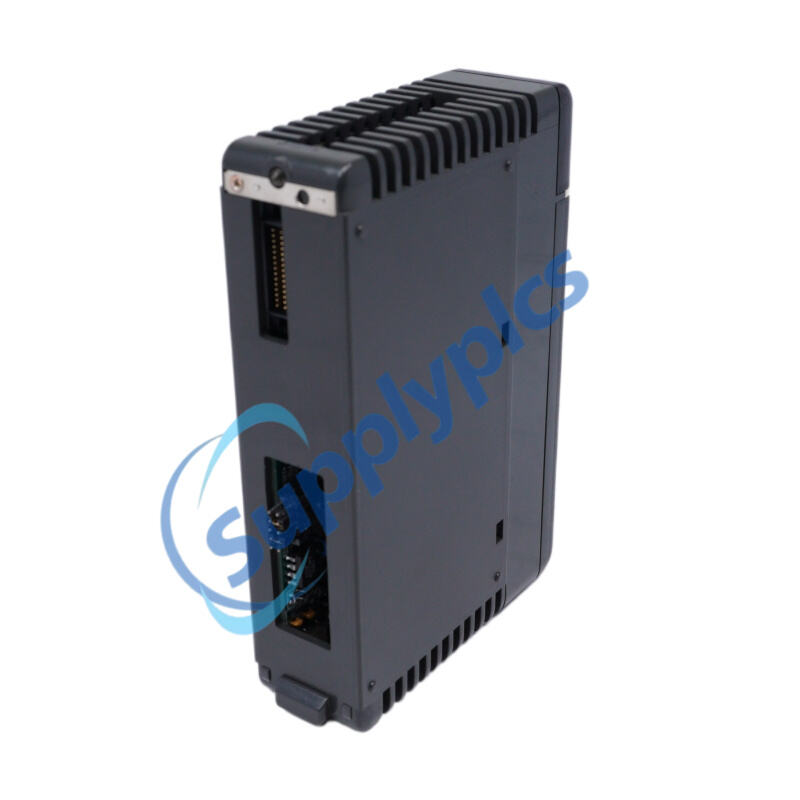

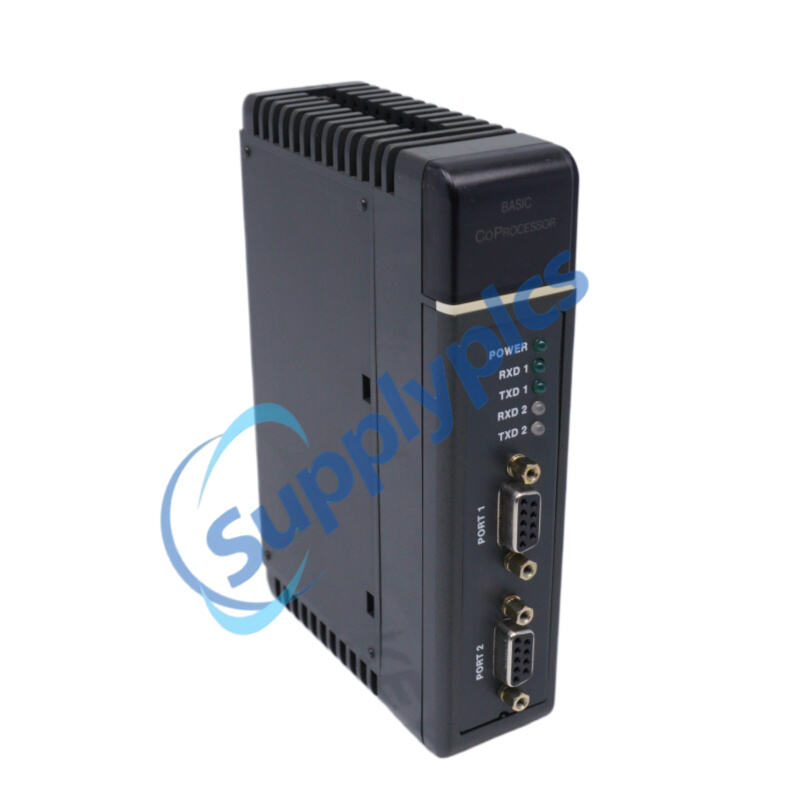

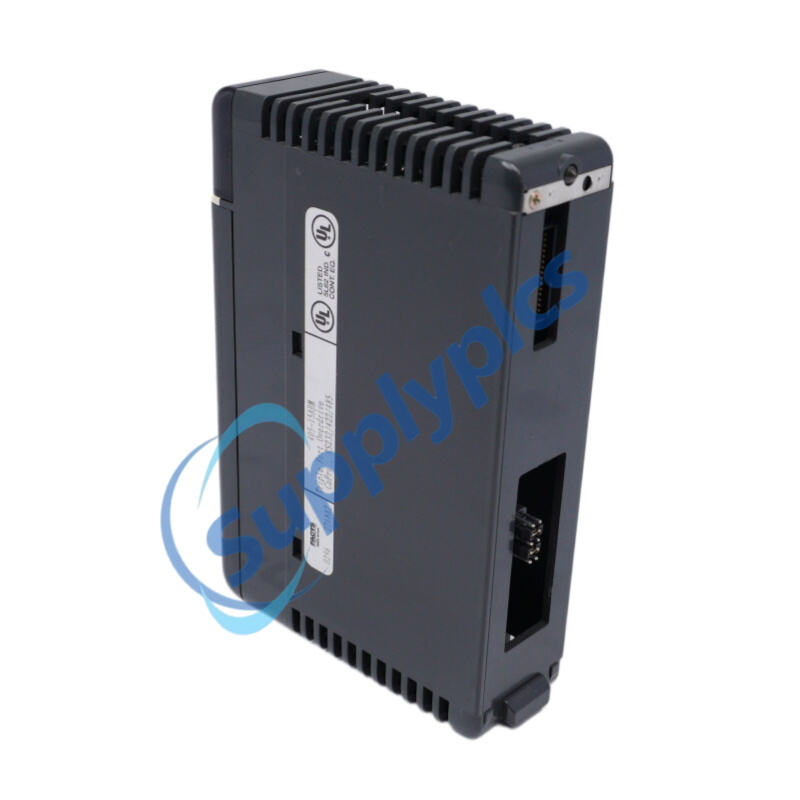

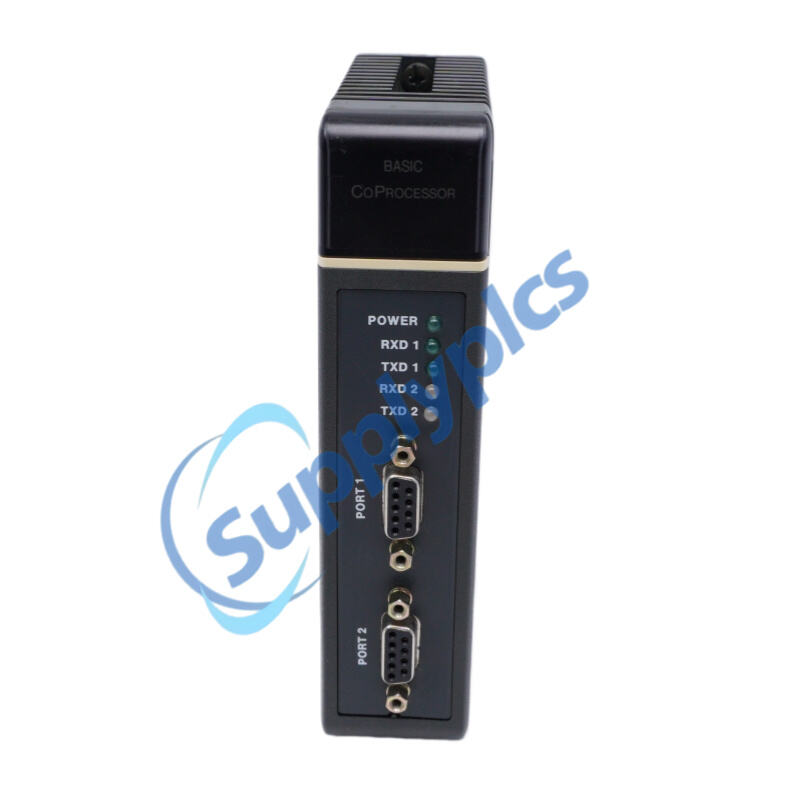

The Siemens 405-15ABM (also known as TI-405-15ABM or F4-CP128-1) is a Triple Port Overdrive CoProcessor module for the Siemens TI 405 / DL405 PLC family. This 405-15ABM module offloads complex mathematical, data‑intensive, and communication tasks from the main CPU, utilizing a 26 MHz processor and 128 KB of battery‑backed RAM. Programmed in FACTS Extended BASIC via the included Windows‑based ABM Commander software, the 405-15ABM significantly enhances the processing power and versatility of legacy automation systems while requiring minimal ladder logic support, making it ideal for sophisticated industrial control applications.
Complex Data Acquisition – Interfacing with bar code readers, serial printers, and instrumentation equipment.
Advanced Math Processing – Performing floating‑point calculations and complex formulas in real‑time.
Intelligent Sensor & Device Control – Connecting to barcode readers, welders, board‑level controllers, and serial instruments.
Legacy System Enhancement – Adding powerful processing capabilities to existing TI 405 / DL405 installations.
Operator Interface & Networking – Connecting to operator interface terminals and computers via multiple serial ports.
Triple Buffered Serial Ports – Offers three independently configurable RS‑232C/422/485 communication ports for maximum connectivity.
High‑Speed Processing – Features a 26 MHz clock rate with 128 KB of battery‑backed RAM for fast, independent program execution.
FACTS Extended BASIC – Includes a powerful, easy‑to‑use BASIC interpreter with floating‑point math (8 significant digits) and real‑time clock/calendar functions.
Minimal PLC Overhead – Directly accesses up to 254 bytes of PLC memory per scan; requires little to no supporting ladder logic.
User‑Friendly Development – ABM Commander for Windows software enables full‑screen BASIC program editing, debugging, and disk storage.
Battery‑Backed Memory – Retains program and data storage during power outages; real‑time clock maintains date/time without external power.
Parallel Processing – Executes high‑speed BASIC programs completely independent of the DL405 CPU scan cycle, offloading complex tasks.
Multi‑Device Communication – Handles simultaneous communication with up to three external serial devices via its three buffered ports.
PLC Memory Interaction – Reads from and writes directly to the PLC’s V‑memory (254 bytes per scan) without requiring complex ladder logic handshaking.
Real‑Time Data Management – Utilizes the battery‑backed calendar/clock to timestamp events and schedule time‑based BASIC interrupts.
Data Format Conversion – Performs floating‑point math, ASCII string handling, and proprietary data conversions, simplifying integration with intelligent field devices.
Q1: Is the Siemens 405-15ABM compatible with my existing TI 405 PLC?
A1: Yes, the 405-15ABM is designed specifically for the Siemens TI 405 / DL405 PLC family and plugs directly into any I/O slot of a DL405 base.
Q2: Does the 405-15ABM require extensive ladder logic programming to operate?
A2: No. The 405-15ABM is programmed in FACTS Extended BASIC using the included ABM Commander software and requires minimal supporting ladder logic.
Q3: What is the maximum baud rate available on the serial ports of the 405-15ABM?
A3: The 405-15ABM supports baud rates up to 115.2K on Port 1, up to 57.6K (or up to 115.2K) on Port 2, and up to 19.2K on Port 3.
Q4: Does the 405-15ABM retain my program and data if power is lost?
A4: Yes, the 405-15ABM features battery‑backed RAM, ensuring that your BASIC program and stored data are preserved during power interruptions.
Q5: What software do I need to program the 405-15ABM CoProcessor?
A5: The 405-15ABM includes ABM Commander for Windows on CD‑ROM, which provides full‑screen editing, debugging, and file management for FACTS Extended BASIC programs.
