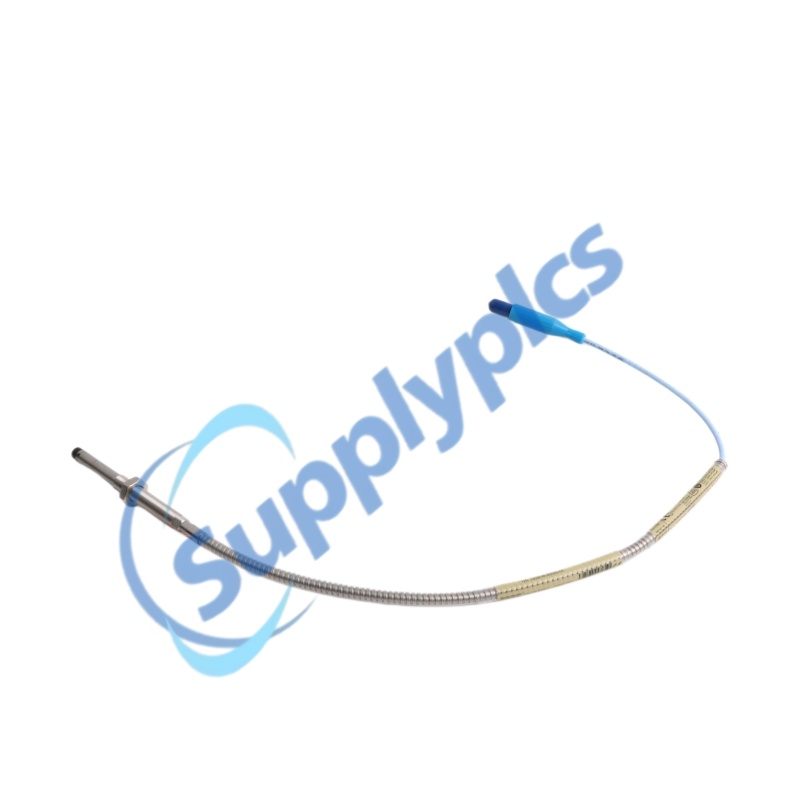

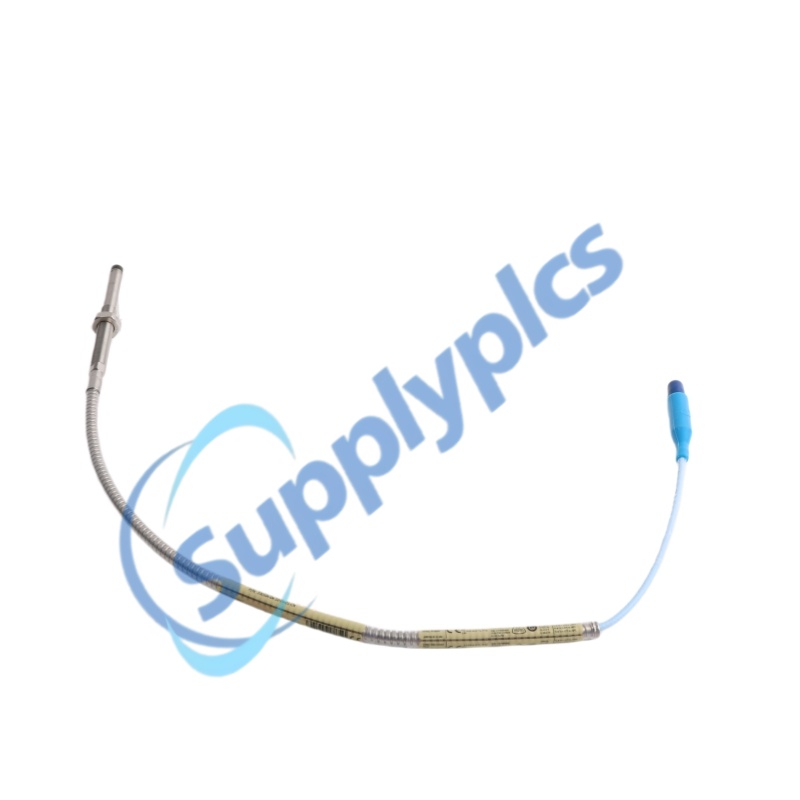

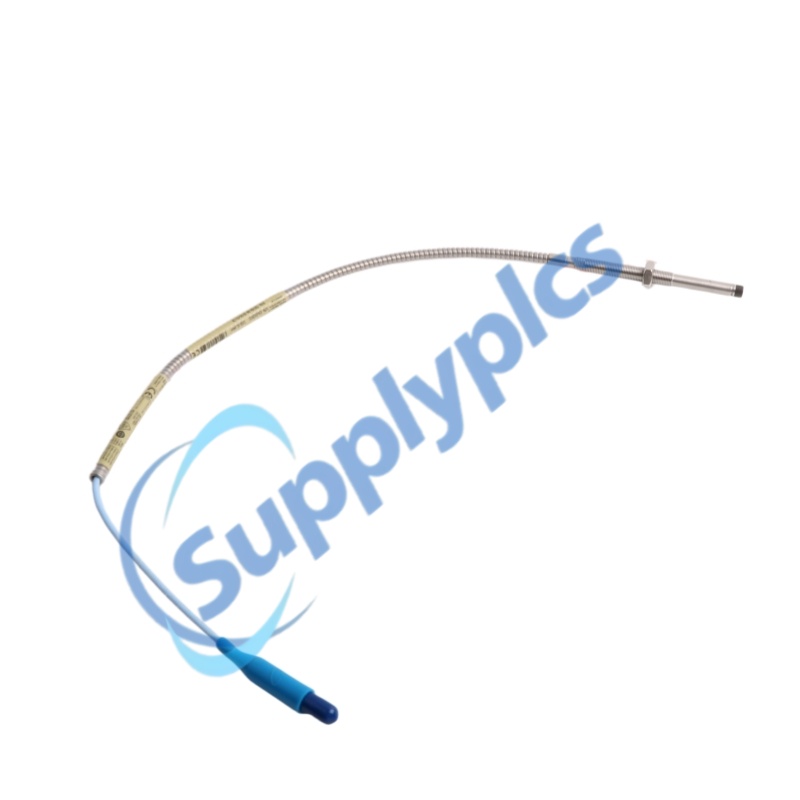

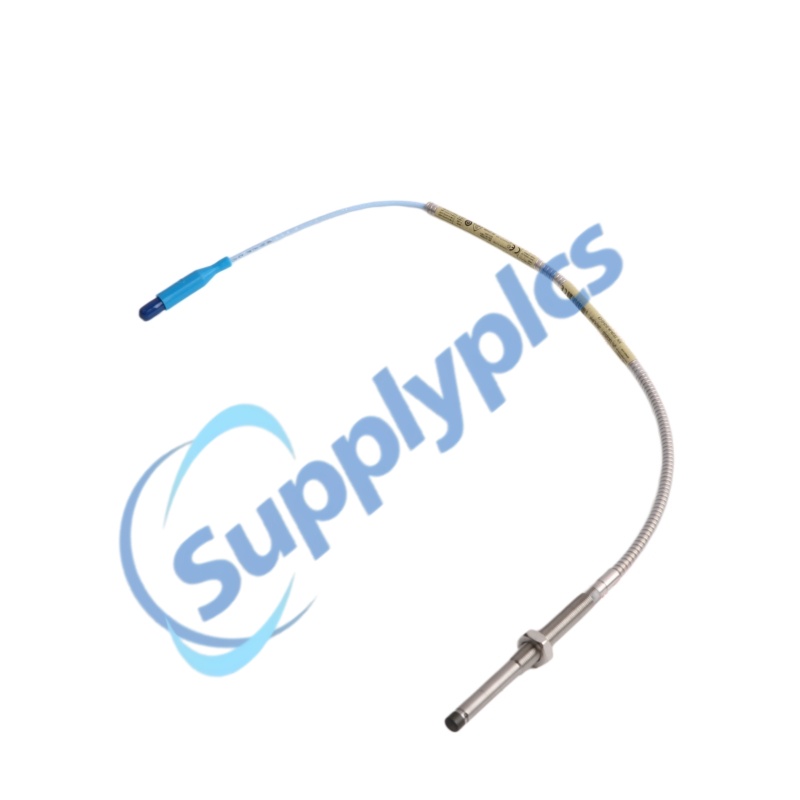

Product Name:3300 XL 8 mm Proximity Probes
Brand Name: BENTLY NEVADA
Model Number:330104-04-09-50-02-05
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
BENTLY NEVADA |
Model Number: |
330104-04-09-50-02-05 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Model |
330104-04-09-50-02-05 |
|
Manufacturer |
Bently Nevada (Baker Hughes) |
|
Product Family |
3300 XL 8 mm Proximity Probe |
|
Thread Type |
M10 x 1 (metric) |
|
Armor |
With armor |
|
Unthreaded Length (Option AA) |
04 = 40 mm |
|
Overall Case Length (Option BB) |
09 = 90 mm |
|
Total Cable Length (Option CC) |
50 = 5.0 metres (16.4 feet) |
|
Connector Option (Option DD) |
02 = Miniature ClickLoc coaxial connector, standard cable |
|
Agency Approval (Option EE) |
05 = CSA, ATEX, IECEx Approvals |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Probe Cable |
75Ω triaxial, FEP insulated |
|
Linear Range |
2 mm (80 mils), from 0.25 to 2.3 mm (10 to 90 mils) |
|
Incremental Scale Factor |
7.87 V/mm (200 mV/mil) ±5% |
|
Frequency Response |
0 to 10 kHz: +0, -3 dB |
|
Minimum Target Size |
15.2 mm (0.6 in) diameter |
|
Minimum Shaft Diameter |
50.8 mm (2 in) |
|
Recommended Shaft Diameter |
76.2 mm (3 in) |
|
Probe Case Torque (Recommended) |
11.2 N·m (100 in·lbf) |
|
Probe Case Torque (Maximum) |
33.9 N·m (300 in·lbf) |
|
Minimum Cable Bend Radius |
25.4 mm (1.0 in) |
|
Probe Temperature Range |
–52°C to +177°C (–62°F to +350°F) |
|
Probe Weight |
323 g (11.4 oz) |
|
Connector Type |
Gold-plated ClickLoc (finger-tight) |
|
System Length |
5 metres (including extension cable) |
|
Target Material (Default Calibration) |
AISI 4140 steel |
|
Compliance |
API 670, CE, RoHS, SIL 2/3 |
The 330104-04-09-50-02-05 is a high-performance 8 mm eddy current proximity probe from Bently Nevada's 3300 XL series, engineered for precision vibration and position monitoring in critical rotating machinery. The 330104-04-09-50-02-05 features an M10 x 1 metric thread with armor, a 90 mm case length, and a 5.0-metre FEP-insulated triaxial cable terminated with a gold-plated ClickLoc connector. When paired with a 3300 XL Proximitor Sensor and extension cable, the 330104-04-09-50-02-05 delivers a linear output voltage proportional to the probe-to-target distance. The 330104-04-09-50-02-05 fully complies with API 670 standards and supports complete component interchangeability without bench calibration.
Fluid-Film Bearing Machines: Vibration and position measurement on turbines, compressors, and large rotating equipment
Keyphasor Measurement: Phase reference and speed sensing for machinery protection systems
Tachometer and Over-Speed Systems: Speed measurement for critical over-speed protection applications
Thrust Position Monitoring: Axial position measurement in thrust bearing applications
Pump and Motor Protection: Radial vibration monitoring on pumps and electric motors
Generator Bearing Monitoring: Shaft vibration and position measurement in power generation equipment
API 670 Compliant Systems: Fully supports mechanical configuration standards for proximity monitoring
Superior Signal Integrity: 7.87 V/mm (200 mV/mil) scale factor with ±5% accuracy delivers reliable, repeatable measurements
API 670 Compliance: Meets stringent American Petroleum Institute standards for mechanical configuration, linear range, accuracy, and temperature stability
Complete Interchangeability: Eliminates the need for individual component matching or bench calibration, reducing installation time and complexity
Enhanced Durability: Armored construction with stainless steel case provides exceptional protection against physical abuse
Corrosion-Resistant Connectivity: Gold-plated ClickLoc connectors resist corrosion and require only finger-tight installation
Positive Locking Mechanism: Connectors audibly "click" when properly seated and resist loosening from vibration
Tool-Free Installation: ClickLoc connectors require no special tools for installation or removal
Wide Temperature Operation: Maintains specified performance from –52°C to +177°C
8 mm Probe Diameter: Thicker encapsulation of the probe coil in molded PPS plastic tip provides a more rugged, durable probe compared to 5 mm variants
Patented TipLoc Molding: Provides a robust bond between the probe tip and probe body for enhanced durability
ClickLoc Connector System: Corrosion-resistant gold-plated brass connectors with finger-tight installation and positive locking click
Armored Cable Construction: Flexible AISI 302/304 stainless steel armor with FEP outer jacket for superior mechanical protection
Metric M10 x 1 Thread: Standard metric configuration for international installations
FEP-Insulated Triaxial Cable: Provides excellent dielectric strength and chemical resistance
API 670 Compliance: Fully compliant with API 670 standard for mechanical configuration and performance
SIL 2/3 Certified: Functional safety certified for use in safety instrumented systems
Hazardous Area Approvals: ATEX, IECEx, and CSA certified with appropriate barriers
Q1: What do the part number suffixes (04-09-50-02-05) represent for the 330104 probe?
A1: 04 = Unthreaded length (40 mm); 09 = Overall case length (90 mm); 50 = Total cable length (5.0 metres); 02 = Miniature ClickLoc coaxial connector with standard cable; 05 = Agency approvals including CSA, ATEX, and IECEx.
Q2: Can the 330104-04-09-50-02-05 be used with a 9-metre Proximitor Sensor?
A2: No. This probe has a 5.0-metre integrated cable and is designed exclusively for use with a 5-metre Proximitor Sensor. Using it with a 9-metre sensor would result in incorrect system calibration.
Q3: What is the default target material calibration?
A3: The factory calibrates all Proximitor Sensors to AISI 4140 steel by default. Calibration to other target materials is available upon request.
Q4: What is the maximum operating temperature for this probe?
A4: The probe operates reliably from –52°C to +177°C (–62°F to +350°F). Exposing the probe to temperatures below –34°C (–30°F) may cause premature failure of the pressure seal.
Q5: Does this probe require special tools for connector installation?
A5: No. The ClickLoc connectors are designed for finger-tight installation only. They will audibly "click" when properly engaged, and the locking mechanism prevents loosening. No special tools are required for installation or removal.
