Product Name:3300 XL Standard Extension Cable
Brand Name: BENTLY NEVADA
Model Number:330130-040-01-00
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
BENTLY NEVADA |
Model Number: |
330130-040-01-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Part Number |
|
|
Manufacturer |
|
|
Product Type |
|
|
Cable Length |
|
|
Cable Construction |
|
|
Cable Capacitance |
|
|
Core-to-Core Resistance |
|
|
Outer-to-Outer Resistance |
|
|
Operating Temperature (Standard) |
|
|
Probe Pull Strength |
|
|
Minimum Cable Bend Radius |
|
|
System Compatibility |
3300 XL and non-XL 3300 series 5 mm & 8 mm components |

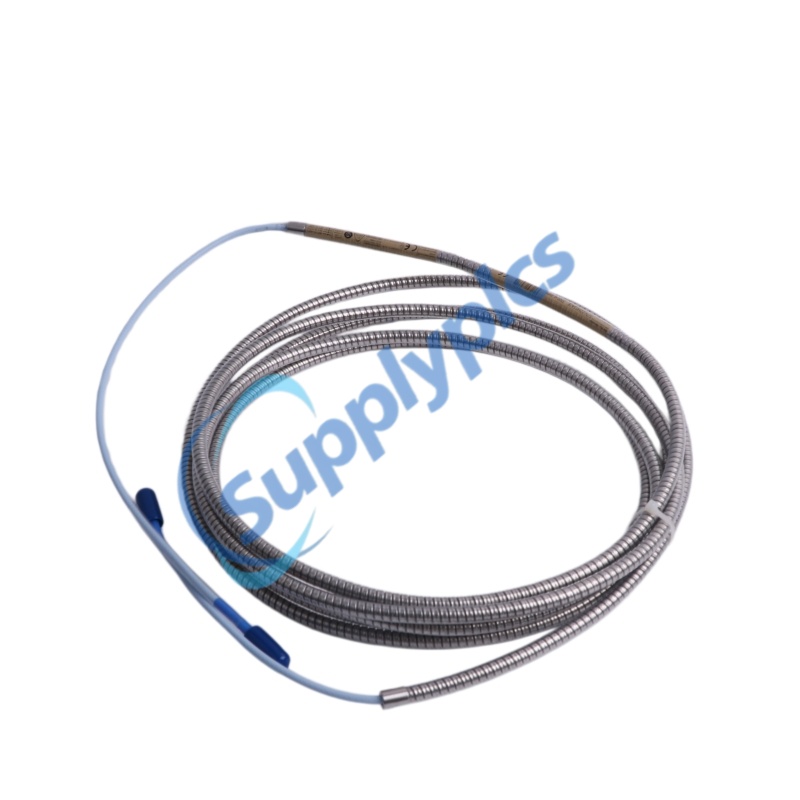

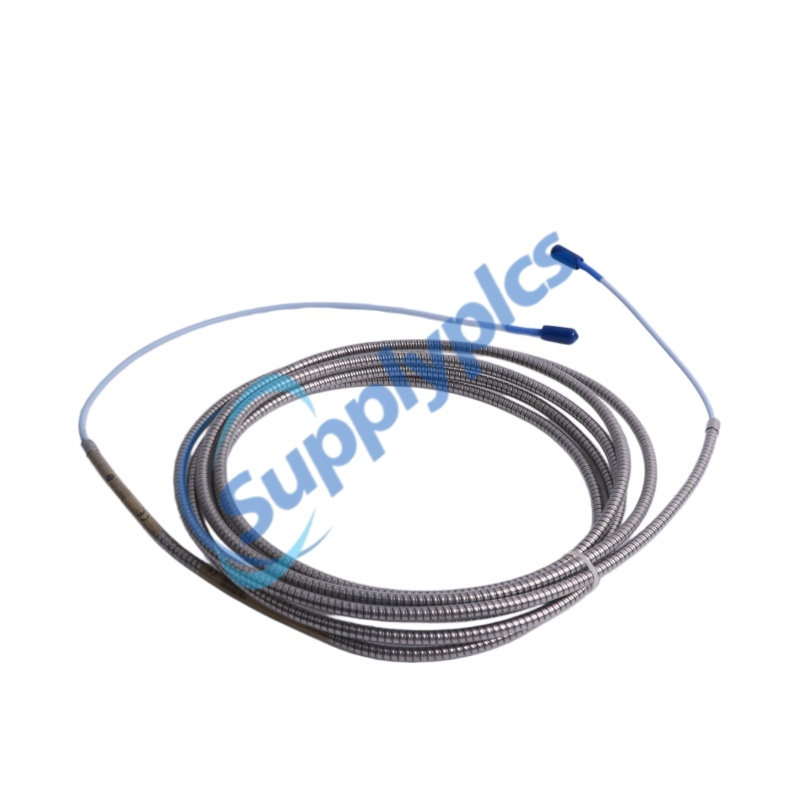

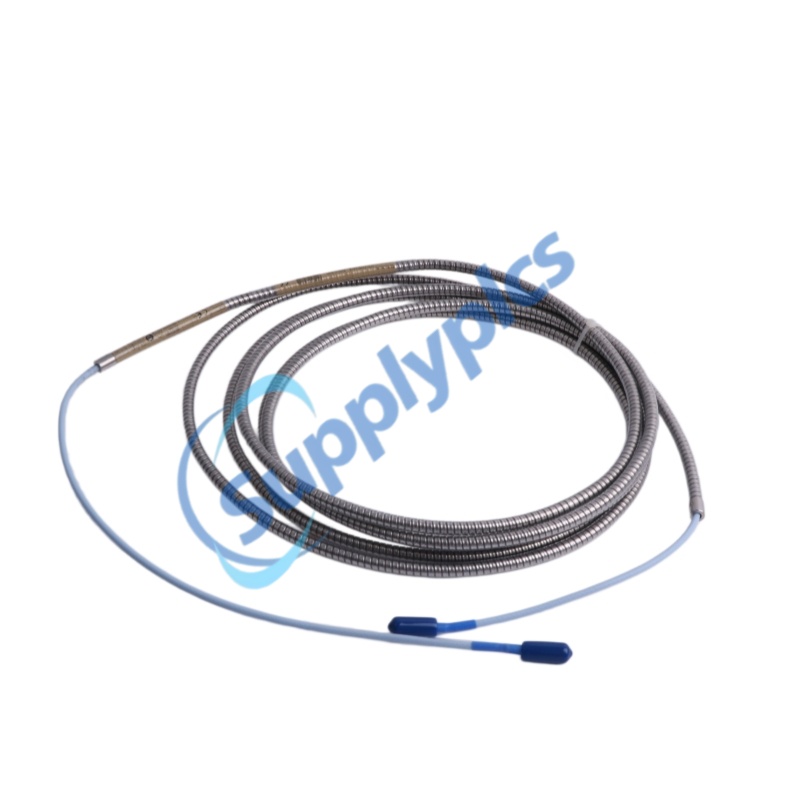

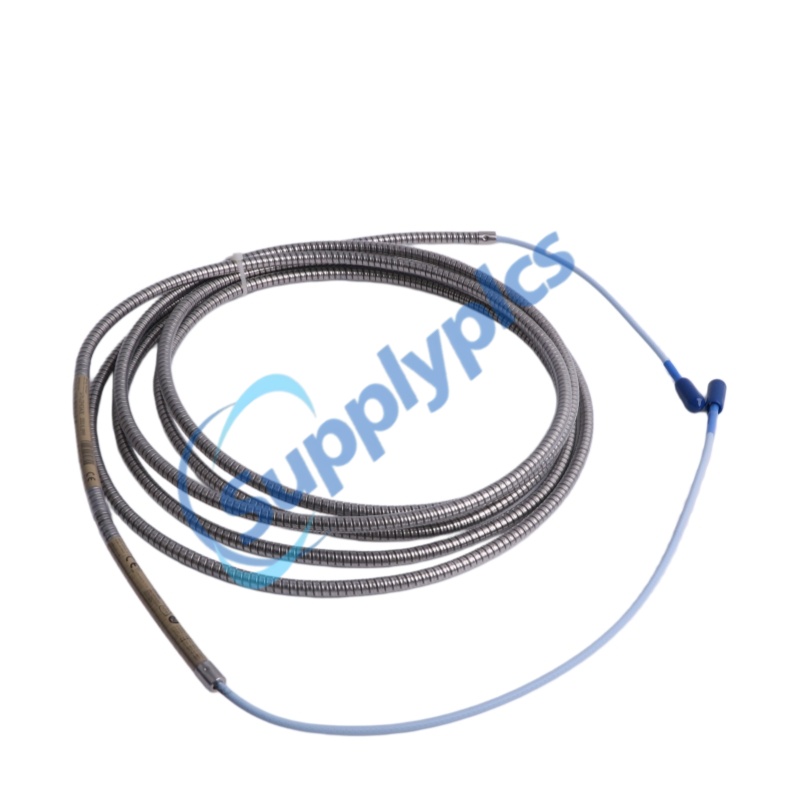

The 330130-040-01-00 is a 4‑meter extension cable for the Bently Nevada 3300 XL Proximity Transducer System . This 330130-040-01-00 provides the critical electrical link between the 3300 XL probe and the Proximitor sensor, maintaining system impedance and accuracy . The 330130-040-01-00 features armored construction for enhanced durability, ensuring reliable signal transmission in demanding rotating machinery applications
System Length Integrity: The total electrical length of the probe plus the extension cable must match the Proximitor's system length (e.g., 5 m probe + 4 m extension cable = 9 m system) . Mixing 5‑meter and 9‑meter Proximitors is not permitted.
Connector Type: Gold‑plated ClickLoc connectors require only finger‑tight torque (the connectors "click" when tight). The locking mechanism prevents loosening .
Connector Protection: The -01 option indicates armored cable without connector protectors . Connector protectors are available as accessories .
Field Wiring: Use 0.2 to 1.5 mm² (16 to 24 AWG) three‑conductor shielded triad cable up to 305 m (1,000 ft) between Proximitor and monitor .
Interchangeability: 3300 XL components are physically and electrically interchangeable with non‑XL 3300 series components .
Armored Construction: Enhanced durability against mechanical stress, squeezing, and wear, suitable for harsh industrial environments with high vibration and physical abuse .
Gold‑Plated ClickLoc Connectors: Corrosion‑resistant connectors with finger‑tight locking mechanism; no special tools needed for installation or removal .
TipLoc and CableLoc Technology: Patented molding method provides 330 N (75 lbf) pull strength for a robust bond between probe tip, cable, and case .
FluidLoc Option: Prevents oil and other liquids from leaking out of the machine through the cable's interior (optional variant) .
API 670 Compliance: Standard 5‑meter system fully complies with API 670 (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability .
Q1: What does the part number 330130-040-01-00 signify?
A1: 330130 = 3300 XL Standard Extension Cable; 040 = 4.0 m (13.1 ft) length; 01 = armored cable; 00 = no agency approval .
Q2: What is the maximum cable length recommended for system performance?
A2: The total system length (probe cable + extension cable) should not exceed 9 meters for optimal performance in standard applications .
Q3: Is the 330130-040-01-00 compatible with existing 3300 series systems?
A3: Yes, 3300 XL 8 mm components are backward compatible and interchangeable with non‑XL 3300 series 5 mm and 8 mm components .
Q4: Can I daisy‑chain multiple extension cables?
A4: While physically possible, a single cable of the correct length is recommended to minimize signal degradation and maintain API 670 compliance .
Q5: What is the operating temperature range of the 330130-040-01-00?
A5: The standard cable operates from -52°C to +177°C (-62°F to +350°F). Extended temperature range (ETR) options are available for up to 260°C (500°F) .
|
141078 |
3300 XL 8 mm and 3300 5 mm Proximity Transducer System Manual. |
|
175751 |
3300 XL Multi-Purpose Stainless Steel Housing. 12”x12”x6”. Can hold up to 8 Proximitor Sensors in a DIN-mount configuration or 6 Proximitor Sensors in a panelmount configuration. (Available with ATEX Zone 0 and Zone 1 certifications.) |
|
176467 |
3300 XL Multi-Purpose Stainless Steel Housing. 12”x8”x6”. Can hold up to 4 3300XL Proximitor Sensors in both DIN-mount and panel-mount configurations. (Available with ATEX Zone 0 and Zone 1 certifications.) |
|
330181 |
3300 XL Multi-Purpose Stainless Steel Housing. 13”x9.5”x7”. Can hold up to 8 Proximitor sensors in a DIN-mount configuration or 6 Proximitor Sensors in a panelmount configuration. Primarily used by customers requiring hazardous area approvals fro their installations. Available with ATEX Zone 0 and Zone 1 and North American Division 1 and Division 2 certifications. |
|
02120015 |
Bulk field wire. 1.0 mm2 (18 AWG), 3 conductor, twisted, shielded cable with drain wire. Specify length in feet. |
|
138492-01 |
Replacement panel-mount mounting pad. |
|
138493-01 |
Replacement DIN-mount mounting pad. |
|
148722-01 |
3300 XL test plug. The 3300 XL Test Plug contains 3 small test pins attached to 3 color-coded 1-meter wires, each terminated in a banana plug. The 3-pin adapter plugs into the test pin holes on 3300 XL-style Proximitor sensors. You can use this test plug to check the performance of the Proximitor sensor from the test pin holes in the terminal strip without removing the field wiring. |
|
04310310 |
3300 XL Proximitor Sensor panelmount screw. One 6-32 UNC thread forming mounting screw. Four screws are required for each Proximitor sensor. (Screws supplied standard with Proximitor housings [3300 XL panel-mount option]). |
|
03200006 |
Silicone self-fusing tape. A 9.1- meter (10-yard) roll of silicone tape to protect connectors. This tape is easy to install and provides excellent electrical isolation and protection from the environment. We do not recommend using this tape inside the casing of the machine. |
|
40113-02 |
Connector Protector Kit. Connector Protector Kit for 3300 XL 8 mm probes and extension cables, including connector protectors and installation tools. |
|
136536-01 |
Connector protector adapter. This allows you to use connector protector installation tools manufactured prior to 1998 with 75Ω ClickLoc connectors. |
|
40180-02 |
Connector protectors. Package contains 10 pairs of connector protectors for 3300 XL 8 mm probes and extension cables. |
|
03839410 |
75Ω triaxial male connector protector. Male connector protectors install onto the extension cable and attach to the female connector protector on the probe, providing environmental protection of connectors. |
|
03839420 |
75Ω triaxial female connector protector. Female connector protectors install onto the probe lead and attach to the male connector protector on the extension cable, providing environmental protection of connectors. You can also place the connector protector onto the extension cable to slide over the connection to the Proximitor sensor to protect that connection from the environment. |
|
04301007 |
3/8-24 probe lock nut with safety wire holes. Single probe lock nut with 2 holes drilled through the nut in order to secure the lock nut in place with safety wire. |
|
04301008 |
M10 x 1 probe lock nut with safety wire holes. Single probe lock nut with 2 holes drilled through the nut in order to secure the lock nut in place with safety wire. |
|
330153-01 |
3300 XL connector kit. Used on 3300 XL 8 mm probes and extension cables. Contains 1 pair each of male and female ClickLoc connectors, 2 colorcoded sleeves, 2 pieces of slit FEP tubing, and 1 strip of silicone tape. |
|
330153-09 |
3300 XL ETR Connector Kit. Used on ETR 3300 XL 8mm probes and 3300 ETR XL extension cables. Contains one pair of male and female ClickLoc connectors, two color-coded sleeves, two pieces of high temperature slit FEP tubing, and one strip of silicon tape. |
|
163356 |
Connector Crimp Tool Kit. Includes 1 set of multiconnector inserts and connector installation instructions. Compatible only with 330153 connector kits or with probes shipped in 2003 or later with ClickLoc connectors uninstalled. Supplied with carrying case. |
