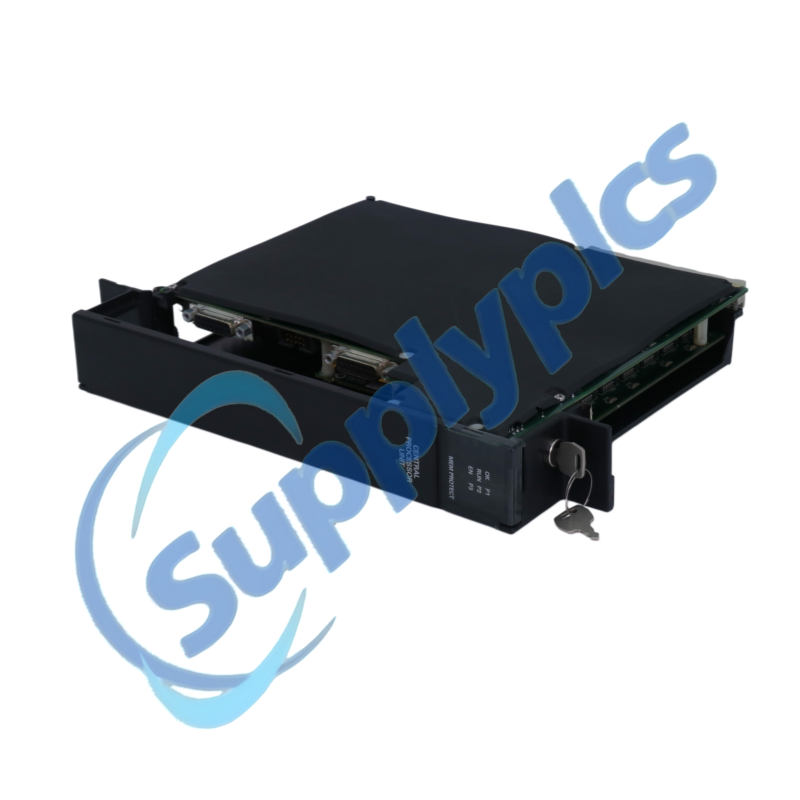

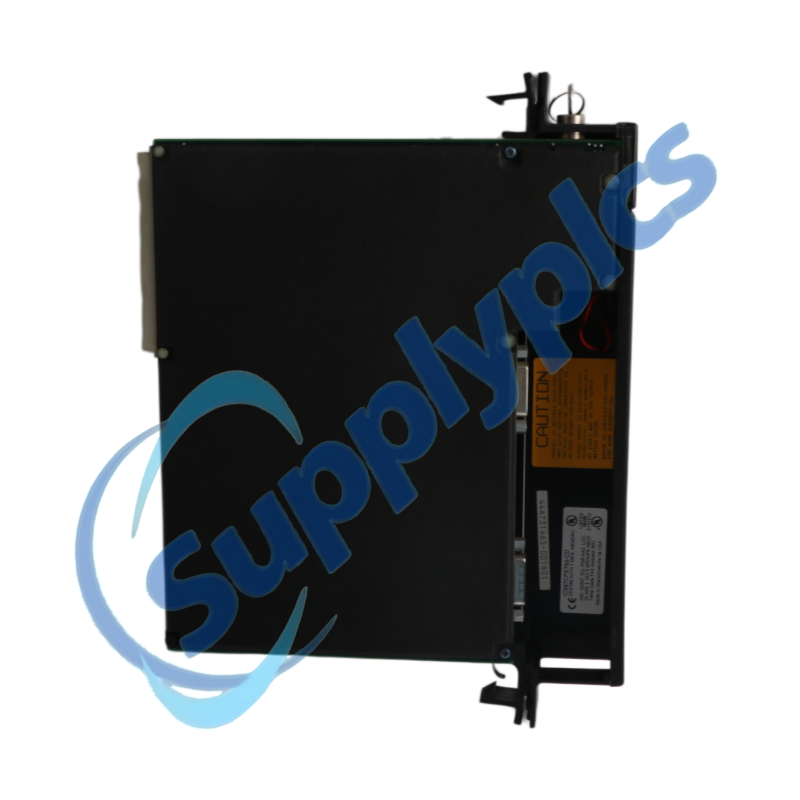

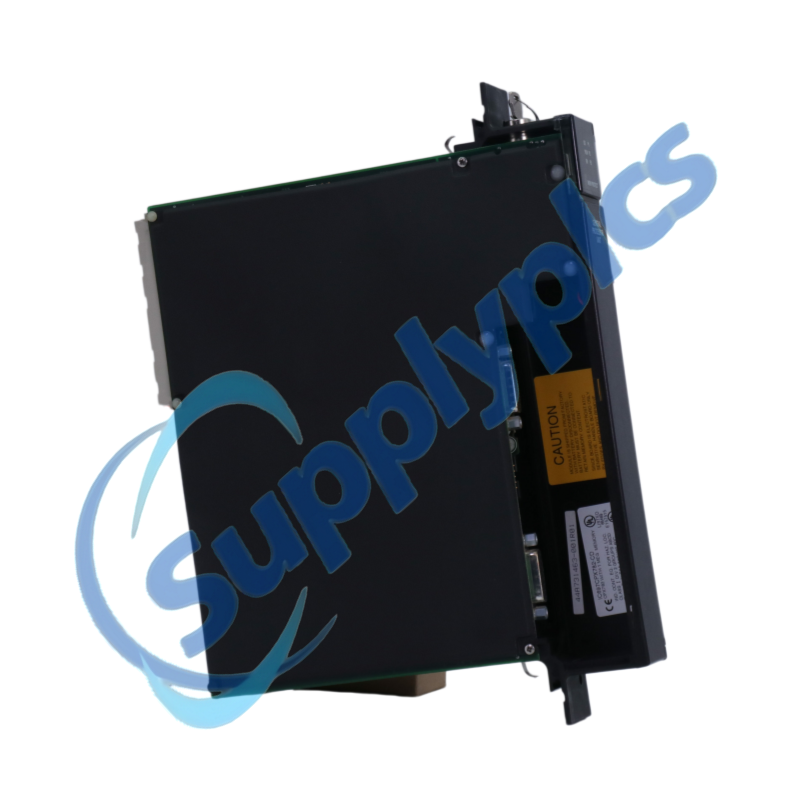

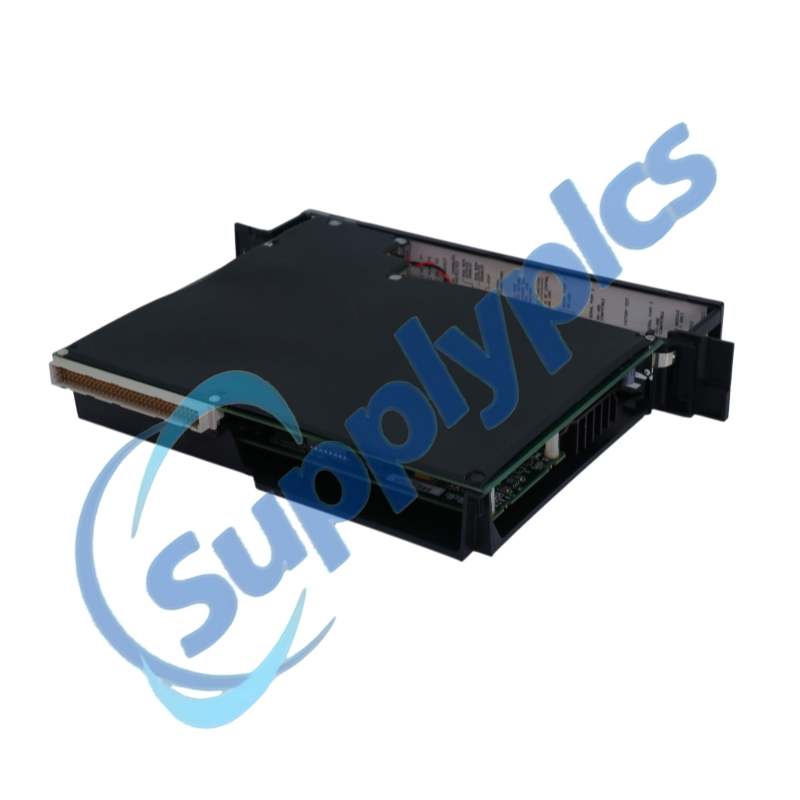

GE IC697CPX782 CPU MODULE

Product Name: CPU MODULE

Brand Name: General Electric

Model Number: IC697CPX782

Place of Origin: USA

Warranty: 12 Months

Whatsapp：+86 18020776782

Email：[email protected]

Appurtenance:

Overview
Commercial Terms
Product Parameters
Introduction
Functions
Features
Advantage
FAQ
Recommended Products

Contact Info

Sales	Email	Whatsapp
Jim Pei	[email protected]	+86 18020776782

Commercial Terms

Minimum Order Quantity	1 Piece
Price	Contact for Jim
Packaging Details	Original new Factory Sealed
Delivery Time	3–7 Days
Payment Terms	T/T
Shipping Method	DHL / FedEx / UPS / TNT
Supply Ability	In stock

Product Parameters

Product Name	GE IC697CPX782 CPU MODULE
Manufacturer	General Electric
Product Type	CPU MODULE
Part Number	IC697CPX782
Weight	0.84kg
Estimated shipping dimensions	4x21.8x29.2cm
Place of shipment	Xiamen, China
Country of origin	USA
Microprocessor	80486DX4
Clock speed	96 megahertz
Compatibility	GE Fanuc 90-70 PLCs
Voltage input	5 Volts DC
RAM	1 MB
NV-RAM	256 KB
Processor Speed	96 MHz
Processor Architecture	32-bit
Floating Point Support	Yes

Introduction

The GE IC697CPX782 CPU Module is a high-performance single-slot processor designed for GE Fanuc Series 90-70 programmable logic controller (PLC) systems. Built for real-time industrial automation, it executes control logic, manages I/O operations, and coordinates system-wide process control tasks. With a 96 MHz 80486DX4 microprocessor architecture, the IC697CPX782 delivers fast and deterministic processing performance suitable for complex machine control, process automation, and material handling applications.

In addition to its high-speed processing capability, the IC697CPX782 integrates 1 MB of battery-backed RAM and 256 KB of non-volatile flash memory, ensuring secure data retention and reliable system recovery. Supporting floating-point calculations, configurable memory allocation, and in-system firmware upgrades, the module is engineered for flexibility and long-term operational stability. It communicates via rack backplane using VME C.1 standards and supports a wide range of GE Fanuc I/O and communication modules, making it a powerful and scalable CPU solution for industrial control systems.

Functions

Executes real-time PLC control logic for industrial automation systems.
Manages communication between I/O modules and system components.
Processes both discrete and analog input/output signals.
Supports complex arithmetic and floating-point calculations.
Controls machine sequencing, timing, and process operations.
Stores and executes user programs using battery-backed memory.
Retains critical data using non-volatile flash memory.
Supports system configuration and programming via Ethernet or serial connection.
Enables integration with IC697 I/O and IC660/IC661 systems.
Handles high-volume I/O processing for large-scale automation systems.
Provides system diagnostics and operational monitoring functions.
Supports firmware upgrades for system enhancement and maintenance.

Features

Single-slot CPU module for GE Fanuc Series 90-70 PLC systems
96 MHz 80486DX4 microprocessor
32-bit processor architecture
1 MB battery-backed RAM
256 KB non-volatile user flash memory
Supports floating-point arithmetic operations
Up to 12,000 I/O points (any mix of discrete signals)
Up to 8,000 analog I/O capacity
Processing speed of 0.4 microseconds per Boolean function
Three serial communication ports
Supports IC697 and IC660/IC661 I/O modules
Configurable program and data memory allocation
Battery-backed calendar clock for time tracking
Supports in-system firmware upgrades
Rack-mounted VME C.1 backplane communication
Compatible with LAN, coprocessor, and communication option modules
Three-position operation mode switch for system control
Designed for MS-DOS and Windows-based configuration software
High-capacity industrial automation CPU design

Advantage

Compared with other PLC CPU modules in the GE Fanuc Series 90-70 family, the IC697CPX782 provides significantly higher processing speed, expanded memory capacity, and greater system scalability for complex industrial automation tasks.

Delivers high-speed processing with a 96 MHz 80486DX4 microprocessor.
Supports large-scale control systems with up to 12,000 I/O points.
Combines battery-backed RAM and non-volatile memory for enhanced data security.
Enables fast logic execution with 0.4 µs Boolean processing time.
Provides flexible system expansion through wide I/O and module compatibility.
Supports floating-point calculations for advanced control algorithms.
Allows in-system firmware upgrades for long-term lifecycle support.
Integrates seamlessly with IC697 and IC660/IC661 I/O systems.
Improves system reliability through robust industrial-grade architecture.
Offers scalable performance for demanding process control applications.

FAQ

Q: What processor is used in the IC697CPX782?
A: The IC697CPX782 uses a 96 MHz 80486DX4 microprocessor with a 32-bit architecture for fast and reliable control processing.

Q: How much memory does the IC697CPX782 include?
A: The IC697CPX782 provides 1 MB of battery-backed RAM and 256 KB of non-volatile flash memory.

Q: What is the I/O capacity of the IC697CPX782?
A: The IC697CPX782 supports up to 12,000 mixed I/O points and up to 8,000 analog I/O channels.

Q: Does the IC697CPX782 support floating-point calculations?
A: Yes, the IC697CPX782 supports floating-point arithmetic for advanced control and processing applications.

Q: Can the IC697CPX782 be upgraded in the field?
A: Yes, the IC697CPX782 supports in-system firmware upgrades for maintenance and system improvements.

Q: How is the IC697CPX782 configured?
A: The IC697CPX782 is configured using MS-DOS or Windows-based programming software via Ethernet or serial connections.

Q: What makes the IC697CPX782 suitable for large-scale automation?
A: The IC697CPX782 combines high-speed processing, large I/O capacity, expandable memory, and robust communication capabilities, making it ideal for complex and large-scale industrial automation systems.
