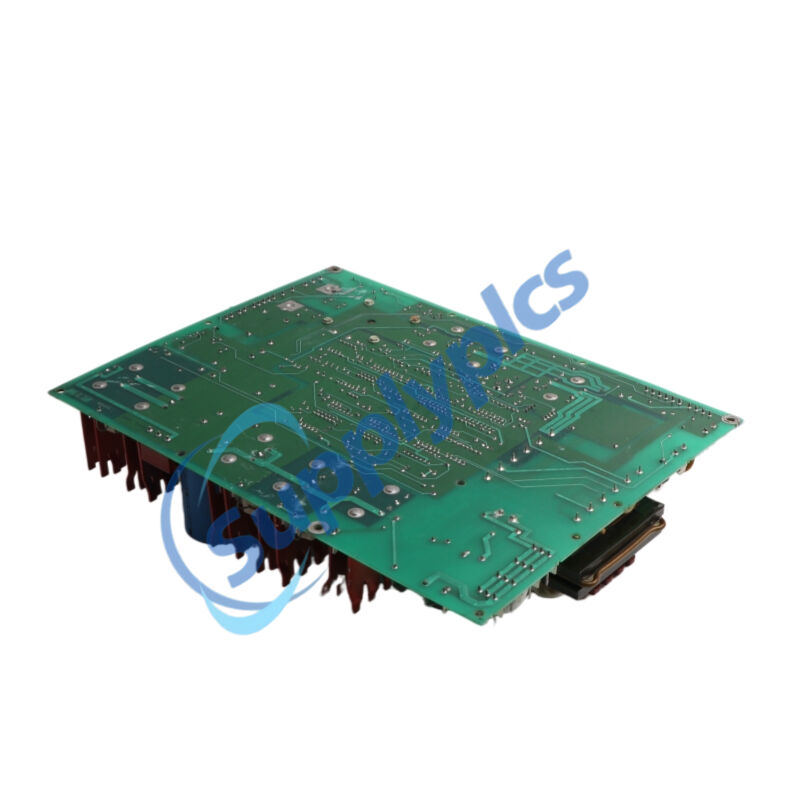

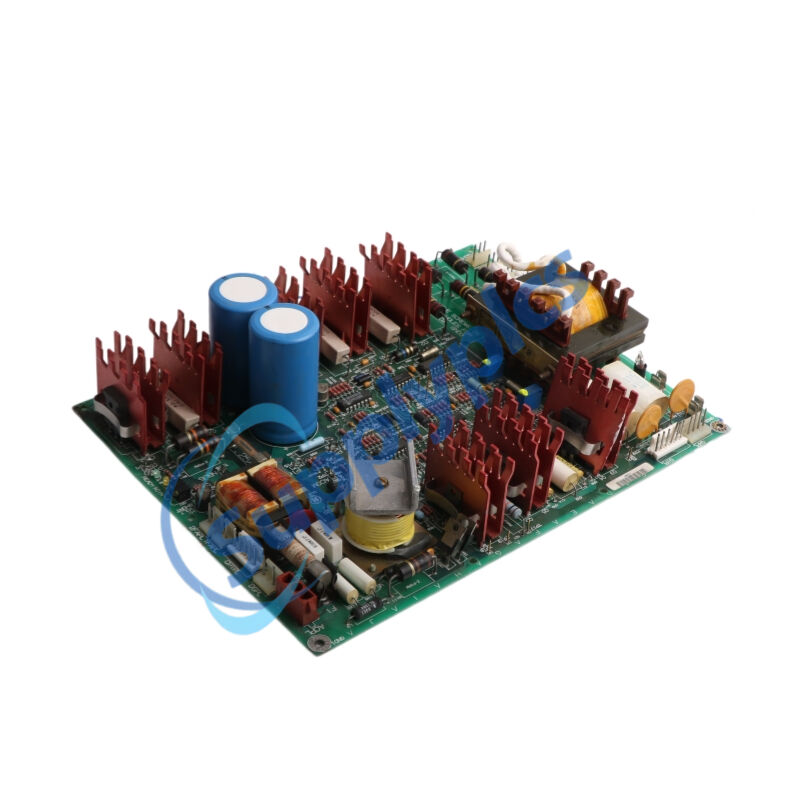

GE Speedtronic Mark V High Frequency Power Supply Board DS200GDPAG1AEB Ready For Ship

The DS200GDPAG1AEB is a gate driver power module engineered by GE for the Mark V Speedtronic turbine control platform. Operating as a dual‑mode AC/DC high‑frequency power supply, the DS200GDPAG1AEB provides regulated control power to driver circuits, inverters, and excitation subsystems within the Mark V architecture. The DS200GDPAG1AEB converts incoming 80–132 VAC or 105–140 VDC into stable 5 VDC logic supply and 24 VDC I/O power while switching at 25 kHz to minimise ripple and transient noise. This DS200GDPAG1AEB also features voltage integrity verification (CVOK logic) and multi‑layer protection mechanisms, ensuring deterministic power delivery for critical turbine control logic, gate drive circuits, and field excitation systems even under variable plant power conditions

Gas turbine and steam turbine Speedtronic control cabinets (GE Mark V platform)

Gate drive and IGBT driver support for variable‑frequency drives (VFDs) and inverter systems

Excitation control systems for synchronous generators in power plants

Industrial motor control centres requiring high‑frequency switched power supply (PWM regime)

Power conversion units (rectifier, inverter, converter) in heavy process industries

DC bus stabilisation and voltage regulation for automation and drive controllers

High‑reliability industrial automation and embedded control platforms (DCS, PLC based)

Marine and offshore power management systems (ABS, DNV‑GL, BV, LR approved variants)

Retrofit and expansion projects upgrading GE Mark V control systems

Wide Dual‑Mode AC/DC Input Acceptance (80–132 VAC / 105–140 VDC) Eliminates the need for separate input modules and adapts to fluctuating plant supply conditions.

600‑700 Watt High‑Frequency Power Rating (25 kHz / 27 kHz Switching) Minimises output voltage ripple and switching losses while improving transient response for demanding load applications.

Dual Output Architecture (120 VDC Internal + 50 VAC Transformer) Provides separate energy paths for control logic, field exciters, and auxiliary loads.

Multi‑Layer Protection & Fault Discrimination (Overcurrent, Overvoltage, Undervoltage Lockout) Embedded inverter overcurrent detection, regulator overcurrent suppression, DC bus overvoltage safeguarding, and undervoltage lockout logic ensure robust fault isolation.

CVOK (Control Voltage OK) System‑Level Integrity Signalling Continuously validates output voltage stability and communicates system readiness status to higher‑level turbine control processors.

Six Diagnostic Indicators (4 LEDs + 2 Neon Lamps) Deliver immediate visual feedback for power‑up, regulation status, inverter health, and fault events, enabling rapid field troubleshooting without external test equipment.

On‑board Rectifier, Filter, Regulator, and Inverter Stages Integrates all required power conversion stages on one board, reducing external component count and simplifying control cabinet layout.

Industrial‑Grade Environmental Tolerance (–10°C to +50°C) Engineered to withstand high temperatures, vibration, and electromagnetic interference typical of turbine enclosures and industrial control rooms.

Isolated Input Circuitry for Voltage Spike Protection Blocks conducted electrical noise and transient surges from the AC/DC input line, preventing downstream logic faults and improving system availability.

Modular Card Form Factor with IP20 Enclosure Compact rack‑mount design for easy maintenance, replacement, and standardised integration into Mark V chassis.

Global Compliance Certification (CE, UL/CUL 508, RoHS) Simplifies international deployment and meets industrial safety requirements for control equipment.

Ethernet Router Communication Service Supports system‑level coordination and diagnostic data exchange when integrated into DCS networks.

Comprehensive Service Documentation (Manual GEI‑100287) Full installation, configuration, and troubleshooting guidance included.

Converts Wide‑Range AC/DC Input into Regulated Control Power (5 VDC & 24 VDC) Supplies stable logic and I/O power to Mark V processor boards, gate driver circuits, and excitation subsystems, ensuring continuous operation even during grid fluctuations.

Switches Inverter Stage at 25 kHz for Ripple Reduction Minimises output voltage ripple and switching losses, delivering clean power for sensitive turbine control logic and high‑frequency PWM drive applications.

Provides Isolated Excitation Supply (50 VAC / 120 VDC) to Field Circuits Drives generator field exciters, auxiliary relays, and external control loops without cross‑coupling noise to critical processor electronics.

Monitors Output Voltage Health via CVOK (Control Voltage OK) Logic Continuously validates output stability and sends a system readiness signal to higher‑level control processors, enabling deterministic fail‑safe actions.

Performs Active Overcurrent, Overvoltage, and Undervoltage Discrimination Detects and isolates fault conditions (inverter overcurrent, DC bus overvoltage, undervoltage lockout), protecting the module and downstream power electronics from electrical overstress.

Provides Rectification, Filtering, Regulation, and Inversion in One Module Integrates all power conversion stages on a single board, simplifying control cabinet design, reducing component count, and improving long‑term reliability.

Delivers Immediate Visual Status Through On‑board Indicators (4 LEDs + 2 Neon Lamps) Displays real‑time feedback for power‑up, regulation status, inverter fault, and module health, enabling rapid on‑site diagnostics without external equipment.

Supports Ethernet Router Communication for System‑Level Coordination Enables diagnostic data exchange and integration with DCS networks, providing advanced monitoring and remote troubleshooting capabilities.

Isolates Input Power to Block Voltage Spikes Input isolation circuitry protects sensitive logic and I/O circuits from conducted electrical noise and surge transients originating from the AC/DC supply line.

Facilitates Plug‑and‑Ready Integration into Mark V Architecture Modular card design with standardised interface and comprehensive documentation (GEI‑100287) reduces commissioning time and simplifies field replacement.

Q1: What is the DS200GDPAG1AEB ?
A1: The DS200GDPAG1AEB is a high‑frequency gate driver power module used in GE Mark V Speedtronic systems, providing regulated control power to driver circuits, inverters, and excitation subsystems.

Q2: What is the power rating of the DS200GDPAG1AEB ?
A2: The DS200GDPAG1AEB is rated for 600‑700 Watts, switching at 25 kHz (27 kHz per some specifications), delivering 5 VDC logic supply and 24 VDC I/O power.

Q3: What input power does the DS200GDPAG1AEB accept?
A3: The DS200GDPAG1AEB accepts dual‑mode input from 80‑132 VAC or 105‑140 VDC, eliminating the need for separate power conditioners.

Q4: Does the DS200GDPAG1AEB include output protection?
A4: Yes, the DS200GDPAG1AEB includes inverter overcurrent detection, regulator overcurrent suppression, DC bus overvoltage safeguarding, and undervoltage lockout logic for multi‑tier protection.

Q5: What key outputs does the DS200GDPAG1AEB generate?
A5: The DS200GDPAG1AEB generates 120 VDC internal supply, 50 VAC transformer output, plus regulated 5 VDC and 24 VDC field power for logic and I/O circuits.
