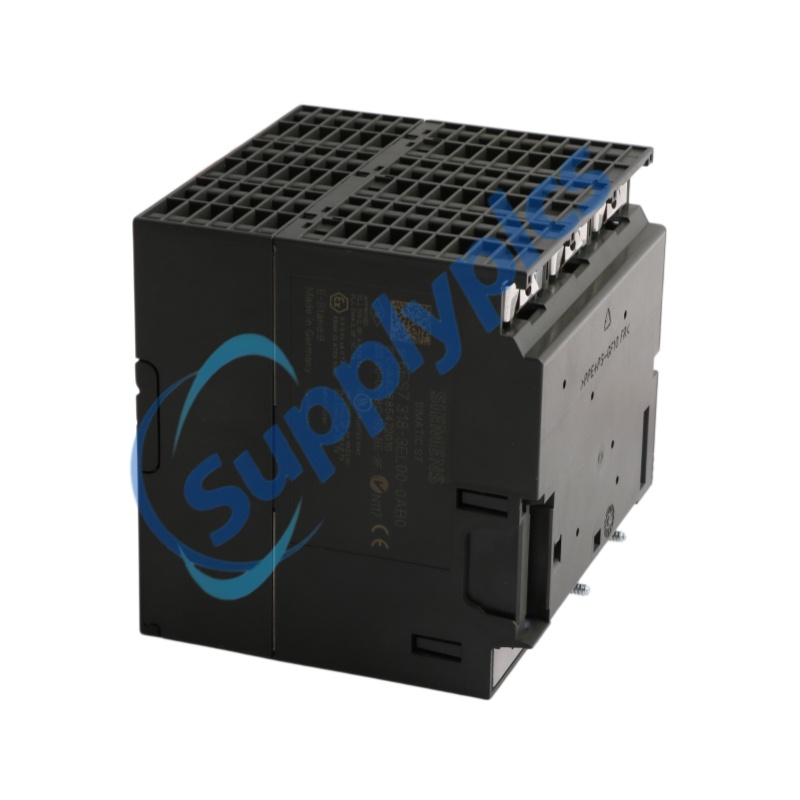

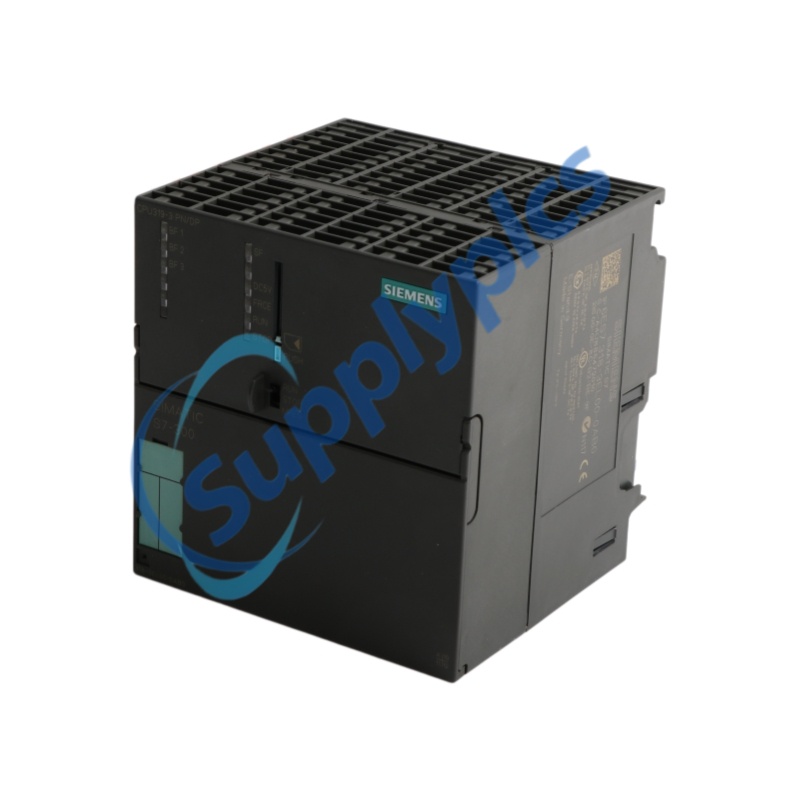

Siemens 6ES7317-2AJ10-0AB0 high-performance CPU module In stock

Siemens 6ES7317-2AJ10-0AB0 high-performance CPU module In stock

Product Name:CPU module

Brand Name:Siemens

Model Number:6ES7317-2AJ10-0AB0

Country of Origin:Germany

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

siemens 6es7317 2aj10 0ab0 high performance cpu module in stock-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Siemens
Model Number:	6ES7317-2AJ10-0AB0
Country of Origin:	Germany
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model	6ES7317-2AJ10-0AB0
Product Series	SIMATIC S7-300 CPU 317-2 DP
Product Type	Central Processing Unit (CPU)
Working Memory	512 KB integrated
Load Memory	Micro Memory Card (MMC), up to 8 MB
Supply Voltage	24 VDC (20.4–28.8 VDC)
Current Consumption	Approx. 850 mA
Power Consumption	Approx. 4 W
Communication Interfaces	1 × MPI/PROFIBUS DP, 1 × PROFIBUS DP
Communication Speed	Up to 12 Mbit/s
Digital I/O Capacity	65,536 Inputs
Digital Output Capacity	65,536 Outputs
Analog Input Capacity	4,096 Inputs
Analog Output Capacity	4,096 Outputs
Programming Software	STEP 7 V5.2 SP1 or later
Dimensions	80 × 125 × 130 mm
Weight	Approx. 460 g

Description

6ES7317-2AJ10-0AB0 is a high-performance CPU module from the Siemens SIMATIC S7-300 PLC family, designed for demanding industrial automation and distributed control applications. Equipped with 512 KB of integrated work memory, dual MPI/PROFIBUS DP interfaces, and fast instruction execution, it delivers reliable processing for complex machine control, production lines, and process automation. The CPU supports both DP Master and DP Slave communication, enabling seamless integration into multi-device industrial networks.

Compatible with STEP 7 V5.2 SP1 or later and requiring a Siemens Micro Memory Card (MMC), the 6ES7317-2AJ10-0AB0 offers flexible programming, extensive diagnostics, and deterministic control performance. Its dual RS485 interfaces simplify communication with remote I/O, HMIs, and PROFIBUS devices while ensuring efficient data exchange across automation systems.

Designed for long-term industrial operation, the 6ES7317-2AJ10-0AB0 combines high-speed processing, large retentive memory, advanced communication capabilities, and comprehensive diagnostic functions, making it an ideal solution for manufacturing, energy, water treatment, transportation, and large-scale industrial control systems.

Applications

Power plants: Performs turbine control, generator monitoring, distributed I/O communication, and process automation.
Substations: Supports PROFIBUS-based protection systems, remote I/O management, and intelligent equipment communication.
Chemical plants: Coordinates process control, batch automation, instrumentation, and production monitoring.
Steel mills: Delivers reliable PLC control for rolling lines, furnace systems, and heavy industrial equipment under harsh conditions.
Machinery manufacturing plants: Controls automated production lines, robotic systems, assembly equipment, and packaging machinery.
Water treatment facilities: Manages pumps, valves, filtration equipment, and SCADA communication.
Transportation systems: Supports tunnel automation, conveyor control, and infrastructure monitoring.

Features

High-performance SIMATIC S7-300 CPU with 512 KB working memory.
Dual integrated MPI/PROFIBUS DP communication interfaces.
PROFIBUS DP Master and Slave functionality.
Supports up to 12 Mbit/s communication speed.
Extensive diagnostic and troubleshooting capabilities.
Compatible with Siemens STEP 7 engineering software.
Maintenance-free memory backup using Micro Memory Card.
Compact industrial design for control cabinet installation.

Functions

Logic Processing: Executes complex PLC programs with high-speed instruction performance.
Network Communication: Exchanges data through MPI and PROFIBUS DP industrial networks.
Distributed Control: Coordinates remote I/O stations and field devices across automation systems.
Process Management: Controls production equipment, machinery, and industrial processes with deterministic performance.
Data Storage: Retains programs and process data using Micro Memory Card technology.
System Diagnostics: Monitors CPU status, communication events, and operating conditions for reliable maintenance.

FAQ

Q1: What is the primary purpose of the 6ES7317-2AJ10-0AB0?
A1: The 6ES7317-2AJ10-0AB0 is a high-performance SIMATIC S7-300 CPU designed for industrial automation, machine control, and distributed process systems.

Q2: Does the 6ES7317-2AJ10-0AB0 support PROFIBUS communication?
A2: Yes. It includes integrated MPI/PROFIBUS DP and PROFIBUS DP interfaces supporting both DP Master and DP Slave operation.

Q3: How much working memory is available in this CPU?
A3: The module provides 512 KB of integrated working memory for user programs and process data.

Q4: Is a Micro Memory Card required for operation?
A4: Yes. A Siemens Micro Memory Card (MMC) is required for program storage and CPU operation.

Q5: Which industries commonly use the 6ES7317-2AJ10-0AB0?
A5: It is widely applied in manufacturing, power generation, water treatment, chemical processing, transportation, and other industrial automation systems requiring reliable PLC control.
