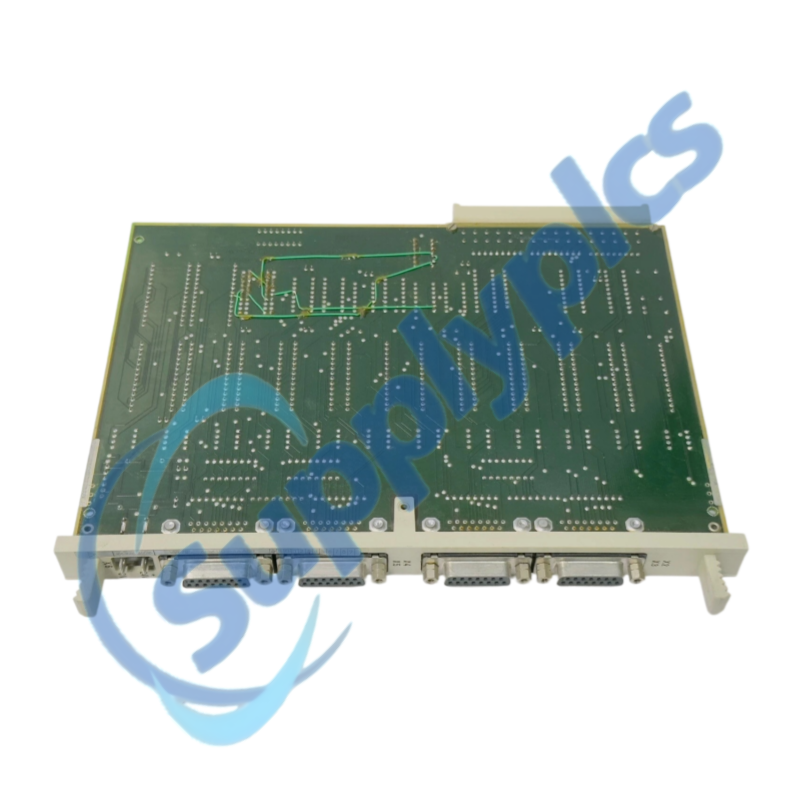

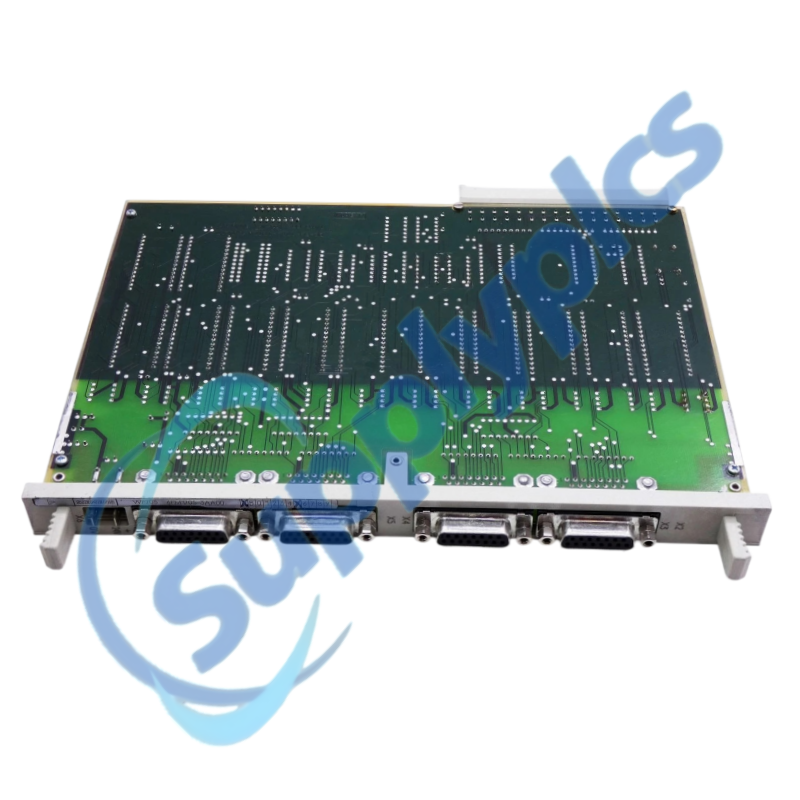

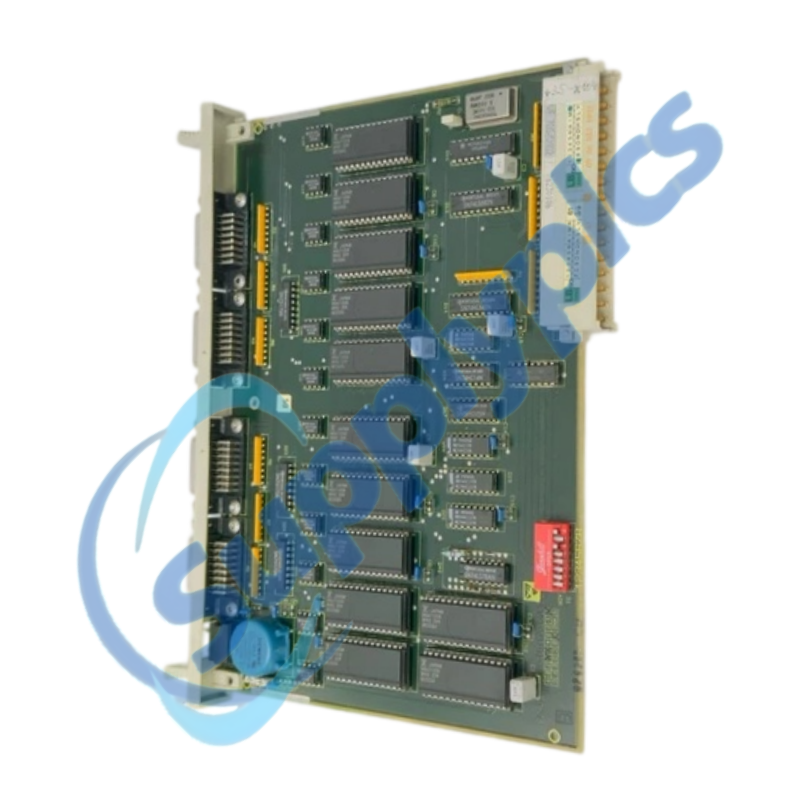

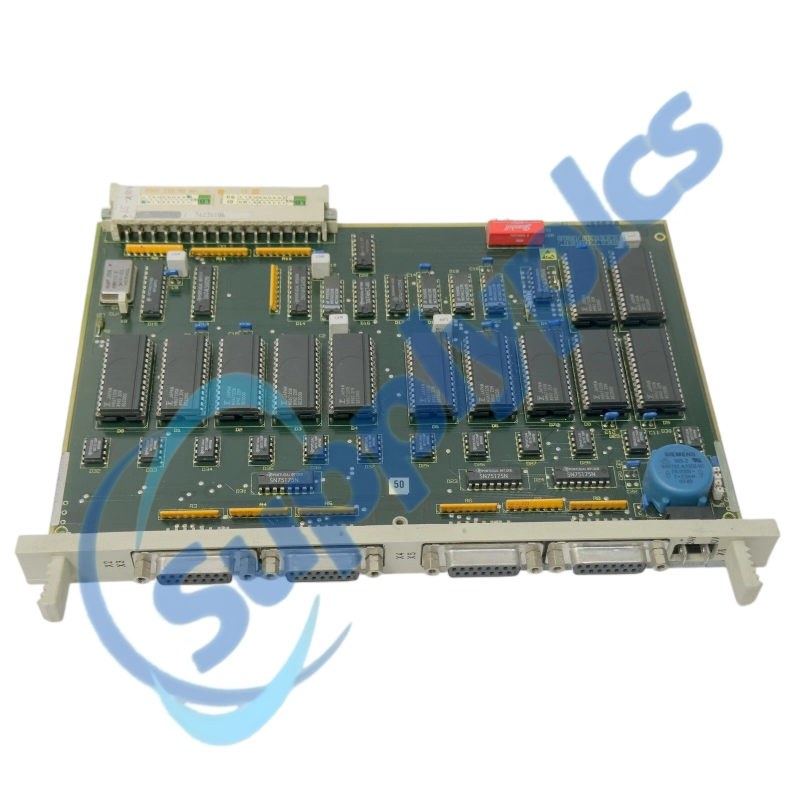

Siemens 6FM1705-3AA00 WF 705 Position Measuring Module

Siemens 6FM1705-3AA00 WF 705 Position Measuring Module

Product Name: WF 705 Position Measuring Module

Brand Name: Siemens

Model Number: 6FM1705-3AA00

Place of Origin: Germany

Warranty: 12 Months

Whatsapp: +86 18020776782

Email: [email protected]

Appurtenance:

siemens 6fm1705 3aa00 wf 705 position measuring module-1

Overview
Specifications
Description
Contact info
Commercial Term
FAQ
Other Products
Recommended Products

Preserve the encoder chain and axis mapping during a legacy exchange

WF 705 is a Siemens position-measuring module for up to twelve independent SSI absolute-encoder axes in compatible SIMATIC S5 systems, or an S7-400 with the specified adapter arrangement.

Before you order: Record the original module, encoder interface, address setting, cable lengths and S5/S7 adaptation before selecting a spare.

Specifications

Module family	WF 705
Order number	6FM1705-3AA00
Function	Absolute-position acquisition
Maximum axes	Twelve independent channels
Encoder interface	Synchronous serial / RS-422
Controller platforms	Compatible SIMATIC S5; S7-400 with adaptation
Controller address space	Four bytes per WF 705
Diagnostics	Cable-break and short-circuit monitoring

Description

The Siemens WF 705 documentation identifies the module as a compact multi-axis position-measuring unit. It receives serial absolute-position values through an RS-422-based interface and passes the measured values to the controller.

A replacement is a system task: preserve axis order, configured transmission rate, SSI encoder settings, cable shielding and the PLC program interface. In an S7-400 installation, the Siemens adapter casing and address mapping must be checked separately.

Monitoring & Control

The Siemens manual describes up to twelve axes and cable-break/short-circuit monitoring. Diagnose the affected encoder channel and wiring before replacing a module that still communicates.

Installation & Integration

For S7-400 use, Siemens describes an S5 adapter casing or coupled S5 expansion equipment. Check the exact rack and addressing arrangement before ordering.

Compatibility & Interoperability

Record SSI encoder type, data format, clock rate and cable length; differences here can produce implausible positions even when the module powers up.

Contact info

CONTACT

Jim Pei

[email protected]

+86 180 2077 6782

Commercial Term

Quotation

Current price and availability

Payment

T/T or agreed terms

Lead time

Confirmed with quotation

Shipping

DHL, FedEx, UPS or agreed freight

Warranty

12 months

FAQ

How do I confirm 6FM1705-3AA00 is suitable for my existing controller?

Compare the nameplate and WF 705 order number with the rack, adapter casing and PLC program. Record the S5 or S7-400 addressing arrangement before ordering.

What should I document before replacing 6FM1705-3AA00?

Label all encoder channels, note the axis-to-machine mapping and configured address, and save the PLC program and module parameters. Photograph cable shielding and connectors.

Why are measured positions wrong after 6FM1705-3AA00 is exchanged?

Compare SSI encoder data format, counting direction, transmission rate, channel assignment and wiring with the previous setup. Check one axis against a known mechanical reference before enabling motion.

How should I investigate an intermittent encoder fault on 6FM1705-3AA00?

Inspect the affected cable and connector, shielding, grounding and encoder supply. Compare the configured clock rate with cable length, then use the module diagnostics to distinguish a channel fault from a wiring fault.

Can 6FM1705-3AA00 be inserted directly into an S7-400 rack?

Do not assume direct insertion. Siemens describes an S5 adapter casing or coupled S5 expansion equipment for S7-400 use; verify the actual hardware configuration and address mapping.

What details should a buyer provide for 6FM1705-3AA00?

Send the full order number and revision, photos of the installed module and adapter, controller model, number of used axes and the required condition or testing evidence.
