GE 90-70 Series PLC

Contact Info

Sales	Email	Whatsapp
Jim Pei	[email protected]	+86 18020776782

Commercial Terms

Minimum Order Quantity	1 Piece
Price	Contact for Jim
Packaging Details	Original new Factory Sealed
Delivery Time	3–7 Days
Payment Terms	T/T
Shipping Method	DHL / FedEx / UPS / TNT
Supply Ability	In stock

Product Parameters

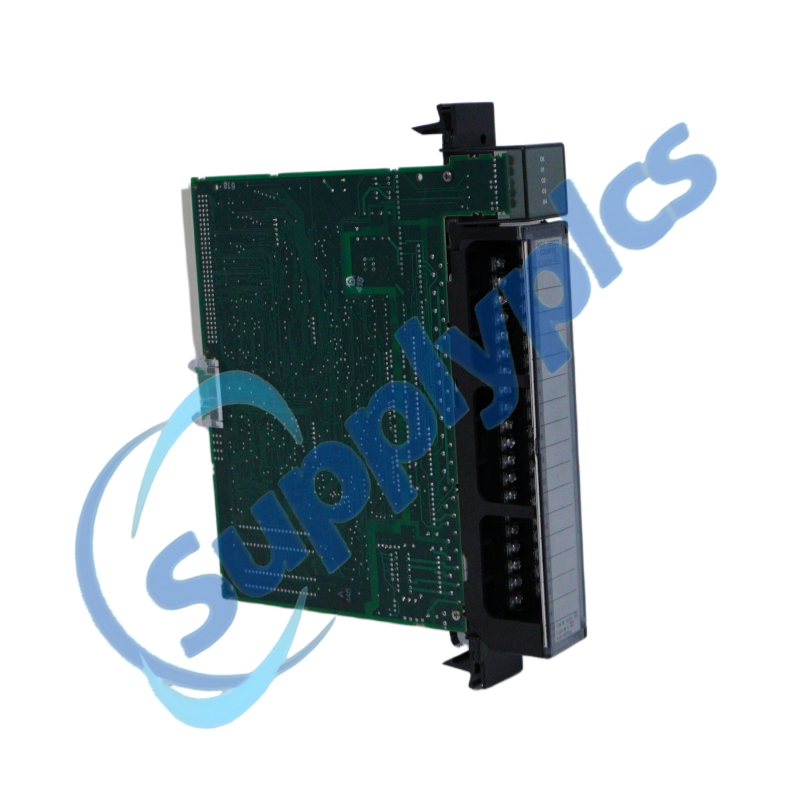

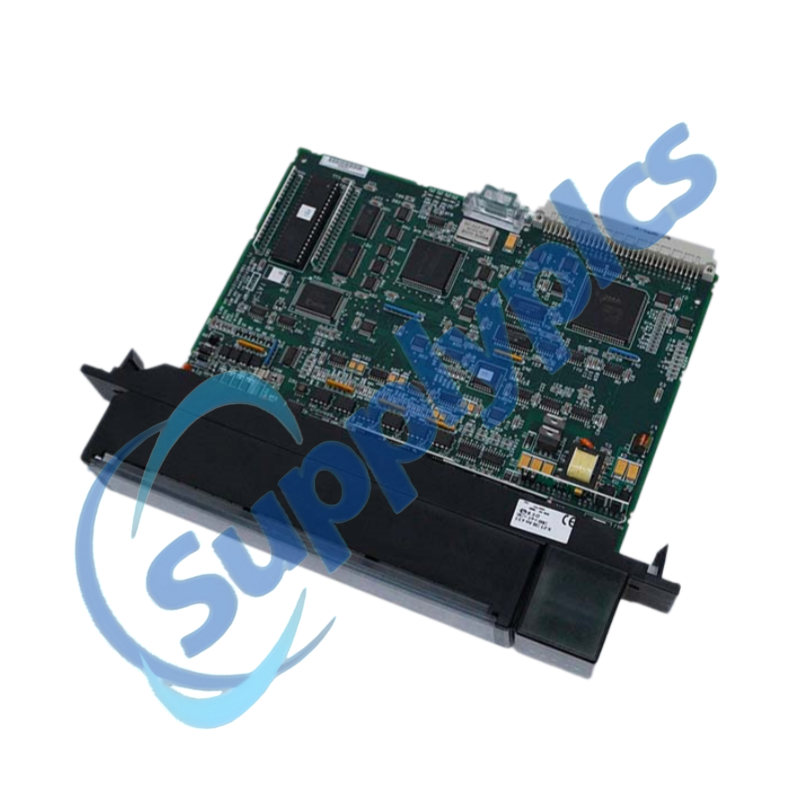

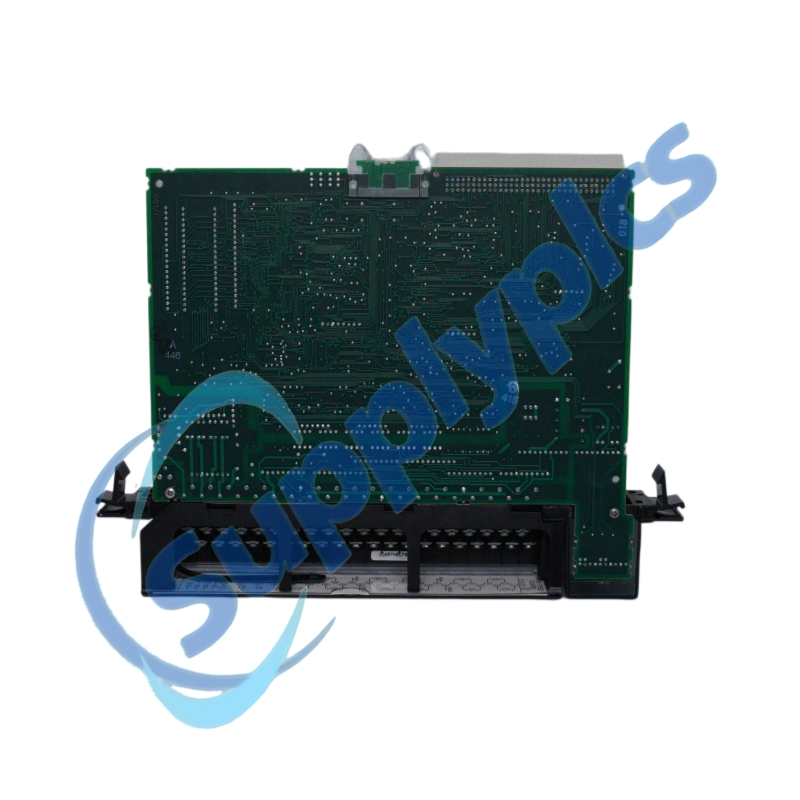

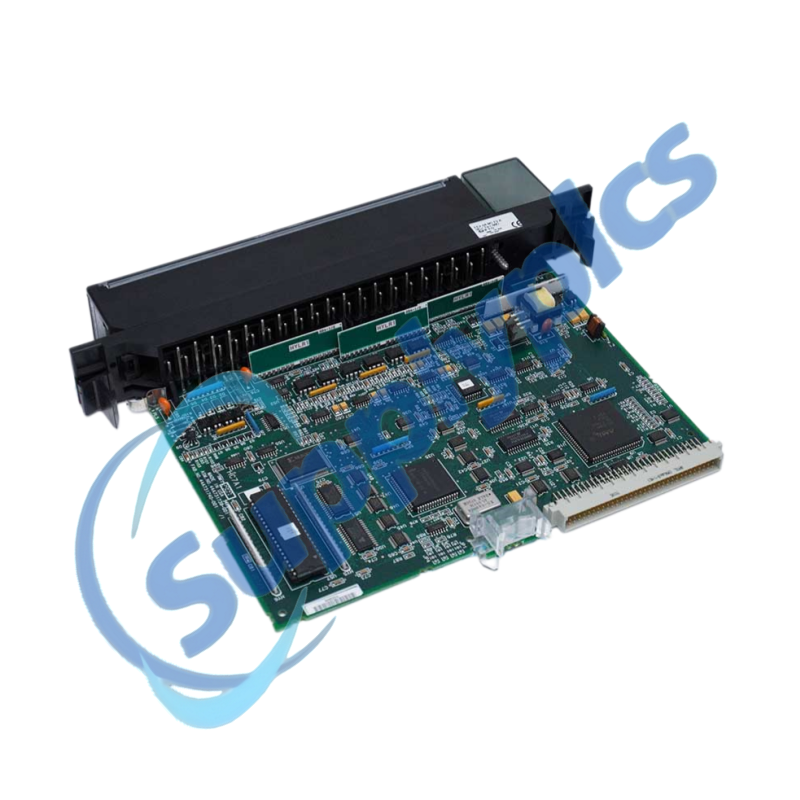

Product Name	GE IC697HSC700 High-Speed Counter
Manufacturer	General Electric
Product Type	High-Speed Counter
Part Number	IC697HSC700
Weight	0.62 kg
Estimated shipping dimensions	4x22.5x29.2cm
Place of shipment	Xiamen, China
Country of origin	USA
Count Rate (Modes A-D, E Up/Down)	200 kHz max
Count Rate (Type E A Quad B)	800 kHz max
Inputs	12 (single-ended or differential)
Input Types	TTL, Non-TTL (10-30 VDC), Magnetic Pickup (400 mV sensitivity on IN1-IN4)
Input Thresholds (TTL)	Von ≥1.4V; Voff ≤0.8V
Input Thresholds (Non-TTL)	Von ≥8.0V; Voff ≤5.0V
Input Filter Delay (IN9-IN12)	Fixed 2 µs
Input Impedance	6000 Ω
Encoder Power Output	5 VDC, 500 mA @40°C, 300 mA @60°C
Output Supply	User-supplied 10–30 VDC or 5 VDC
Output Current (per point)	1.0 A max at 60°C
Input Voltage	5 VDC; 10-30 VDC
Input Voltage Range	10-30 V DC
Output Voltage	30 V DC
Current draw	250 mA at 5VDC
Number of Inputs	12 single-ended
Power Consumption	500 milliamps at 5 V DC

Introduction

The GE IC697HSC700 High-Speed Counter Module is an intelligent, single-slot automation module designed to process high-speed pulse signals independently of the PLC CPU. Engineered for demanding industrial applications, it supports count rates up to 200 kHz in standard counting modes and up to 800 kHz in Type E A Quad B mode, making it ideal for encoder feedback, motion control, positioning systems, and flow measurement applications. By handling counting logic internally, the module significantly reduces CPU workload while ensuring accurate and real-time event processing.

The IC697HSC700 features 12 configurable single-ended or differential inputs and four positive-logic outputs, supporting TTL, 10–30 VDC, and magnetic pickup signal types. Selectable high-frequency and low-frequency input filters provide excellent noise immunity in harsh industrial environments, while dedicated interrupt capabilities enable immediate PLC response to preset count events. With onboard oscillator functionality, high-speed output response, diagnostic LEDs, and compatibility with GE Fanuc Series 90-70 PLC systems, the IC697HSC700 delivers a powerful and reliable solution for high-speed counting and motion-related control applications.

Functions

Processes high-speed pulse counting independently of the PLC CPU.
Supports quadrature encoder feedback for motion and positioning control.
Performs up/down counting for flow measurement and production tracking applications.
Generates hardware interrupts at preset count values for immediate PLC response.
Provides real-time monitoring of encoder, sensor, and pulse-generating devices.
Controls external devices through four high-speed positive-logic outputs.
Accepts TTL, non-TTL, and magnetic pickup input signals.
Provides rate measurement and frequency monitoring functions.
Utilizes an onboard oscillator for timing and pulse generation applications.
Filters electrical noise through selectable input filtering options.
Supports bidirectional counting for advanced motion control systems.
Enables precise position, speed, and event tracking in industrial processes.

Features

Supports count rates up to 800 kHz in Type E A Quad B mode
Supports count rates up to 200 kHz in Modes A-D and Type E Up/Down mode
Twelve configurable single-ended or differential inputs
Four positive-logic high-speed outputs
Compatible with TTL input signals
Supports 10–30 VDC non-TTL input signals
Accepts magnetic pickup inputs with 400 mV sensitivity on IN1–IN4
Dedicated hardware interrupt capability for preset count events
Independent operation without continuous PLC CPU processing
Fast output response within 7 µs of zero-count detection
Selectable high-frequency input filter (2.5 µs)
Selectable low-frequency input filter (12.5 ms)
Fixed 2 µs input filter delay for IN9–IN12
Integrated oscillator adjustable from 15 Hz to 1 MHz
Encoder power output of 5 VDC, up to 500 mA at 40°C
Supports user-supplied output voltage from 5 VDC to 30 VDC
LED status indicators for module and output diagnostics
Removable terminal strip for simplified field wiring
Designed for motion control, encoder feedback, and high-speed counting applications

Advantage

Compared with other high-speed counter modules, the IC697HSC700 offers faster counting performance, greater signal compatibility, and independent processing that minimizes PLC CPU loading.

Supports ultra-fast counting rates up to 800 kHz for high-resolution encoder applications.
Processes counting tasks independently, reducing PLC processor workload.
Generates hardware interrupts for immediate response to critical events.
Supports multiple input types including TTL, non-TTL, and magnetic pickup signals.
Eliminates the need for external signal converters in many applications.
Provides selectable filtering options for improved noise immunity.
Delivers rapid output activation within 7 µs for precision control tasks.
Supports both single-ended and differential input configurations.
Includes onboard oscillator functionality for advanced timing applications.
Offers high output current capacity for direct device control.
Simplifies integration with existing GE Fanuc Series 90-70 automation systems.
Enhances motion control, positioning accuracy, and process monitoring performance.

FAQ

Q: What is the maximum counting speed supported by the IC697HSC700?
A: The IC697HSC700 supports counting rates up to 200 kHz in standard counting modes and up to 800 kHz in Type E A Quad B mode.

Q: How many inputs and outputs does the IC697HSC700 provide?
A: The IC697HSC700 features 12 configurable inputs and 4 positive-logic outputs for high-speed control applications.

Q: What signal types are compatible with the IC697HSC700?
A: The IC697HSC700 supports TTL signals, 10–30 VDC non-TTL signals, and magnetic pickup inputs with 400 mV sensitivity on designated channels.

Q: Does the IC697HSC700 reduce PLC CPU workload?
A: Yes, the IC697HSC700 performs counting, signal processing, and output control internally, significantly reducing CPU processing requirements.

Q: What filtering options are available in the IC697HSC700?
A: The IC697HSC700 provides selectable high-frequency (2.5 µs) and low-frequency (12.5 ms) input filtering to improve signal integrity and noise rejection.

Q: Can the IC697HSC700 generate interrupts for critical events?
A: Yes, the IC697HSC700 can generate hardware interrupts at user-defined preset count values, allowing immediate PLC response.
